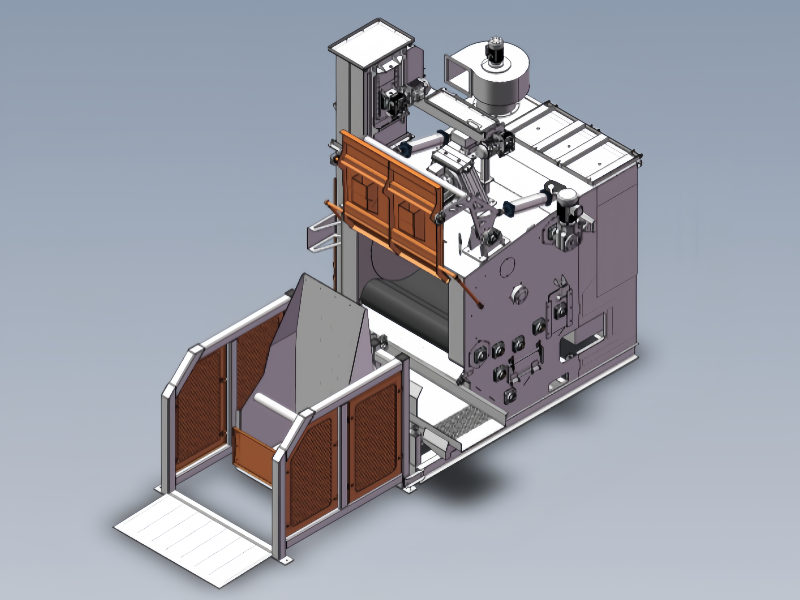

Automatic Drum Shot Blasting Machine, PLC Control

Introduction

An Automatic Drum Shot Blasting Machine with PLC Control is a highly efficient industrial device designed for surface cleaning, rust removal, and surface strengthening of various medium and small-sized castings, forgings, and workpieces. This machine is particularly useful for parts that are not easily broken and can withstand tumbling during the blasting process.

Applications

1. Foundry: Ideal for de-sanding, stripping, and preparing castings for further processing.

2.Forge: Effective for deburring, removing laminate and coating, and achieving a homogeneous surface finish.

3. Aluminum Die-Casting: Provides uniform surface blasting finishing.

4. General Manufacturing: Suitable for cleaning and surface treatment of small to medium-sized metal parts.

Free Technical Consultation

Outstanding Advantages

Using Wear-resistant rubber track+manganese plate;
Using advanced wet dust collector system;
Using crushed shot secondary separation system;
Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
Using steel shot flow automatic control system;
Optional: automatic loading and unloading system;
Optional: Magnetic sorting system + spiral pusher sorting + air separation sorting system;

Contrast Of Shot Blasting Products

Before shot blasting

After shot blasting

Working Principle

During the shot blast process the workpieces are constantly cascading over each other resulting in effective all-around blast coverage. The continuous contact between the workpieces accelerates the deburring process and/or the loosening and discharge of sand cores from sand castings. Up to three high-performance blast wheels guarantee homogeneous blasting results in extremely blasting cycle times, the endless belt can consist of high quality perforated rubber, or respectively, a hardened steel or manganese steel slat. Workpieces specific mixing strips. Either bonded on the rubber or welded on the slats ensure an optimized cascade action in combination with a selected belt speed.

Industry Application

Shot blasting and derusting production line for Marine engineering machinery parts

Marine Transportation Industry

Shot blasting cleaning line solution for parts of bullet train brake system
