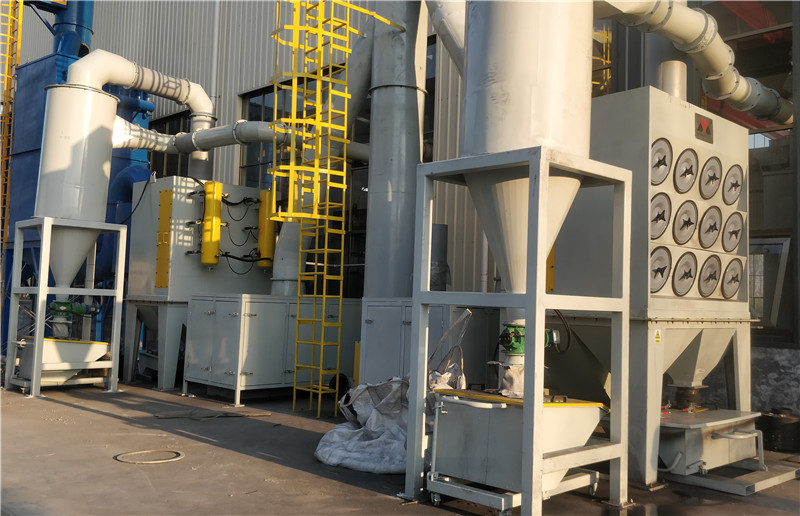

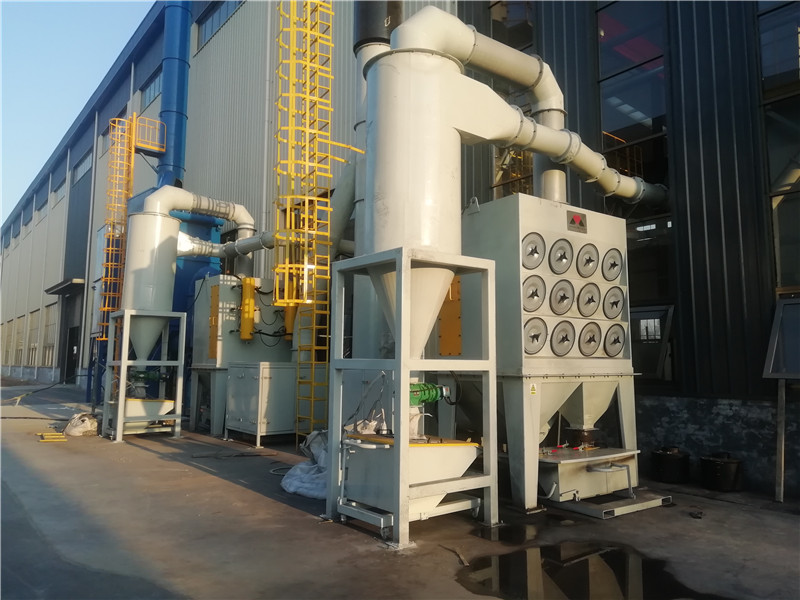

Dry dust collector
Production

A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas. Designed to handle high-volume dust loads, a dust collector system consists of a blower, dust filter, a filter-cleaning system, and a dust receptacle or dust removal system. It is distinguished from air purifiers, which use disposable filters to remove dust.

Outstanding Advantages
  • Widely Application;
  • Adopt high quality filter element, more environmental protection.
  • Cyclone separation system is adopted.
  • Dust emission is less than 30mg/m3, and the environmental protection index reaches the European standard;
  • Easy replacement of filter element.
  • Integrated design, maintainability increased by 95%.
  • A dust collector with high cost performance.
Contrast Of Products
VS
Mayflay
Other Manufactures
Technological Process

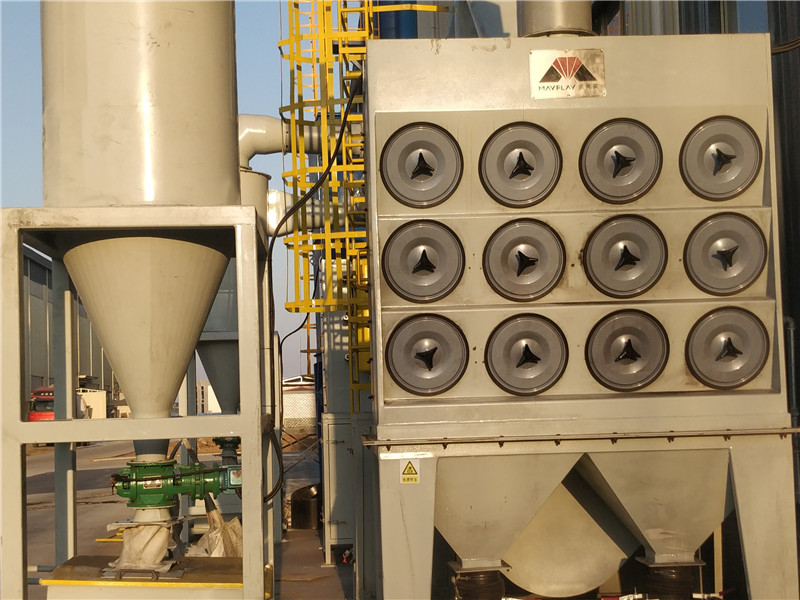

The dust-laden gases enter the collector through through the ductwork. Fans either push or pull the air through the ducts. Air travels down to the hopper and hits a set of baffles and makes a turn and goes back up. This creates an area for air to slow down and allows majority of dust to fall to hopper without reaching the cartridges. Next, the air passes through the dust collector’s cartridge filters. which is the metal sheet separating the dirty and clean air spaces.The filters capture the dust. Some of it falls off. Some of it sticks to the filters. Gaskets at the top of each filter seal it to the tube sheet to keep dust from sneaking through. A pulse of compressed air blows into the filters. Because the pulse of compressed air goes in the reverse direction of the regular airflow, we call it a reverse pulse-jet collector. The pulse of compressed air blows the accumulated dust off the filters. The dust drops out of the collector and the filters are ready to collect more dust. On the other side of the filters, filtered air enters the clean air plenum. From there, clean air comes up through center of cartridges and out the collector exhaust. Air is now clean and safe for the environment.
Parameter Introduction

Cartridge filter(With medium pressure fan)

NO. Model parameters DC-4 DC-6 DC-9 DC-12 DC-24
1 Applications Shot blasting machine/shot peening machine/sandblast booth
2 Power 3KW 5.5KW 7.5KW 11KW 22KW 37KW 45KW
3 Air Volume(m3/h) ≤4300 ≤5000 ≤9100 ≤18000 ≤23000 ≤28000 ≤25000~38000
4 Air Pressure(Pa/h) ≤1100 ≤2600 ≤2100 ≤2200 ≤2800 ≤2800 ≤3900~3200
5 Noise(db) ≤80 ≤80 ≤80 ≤80 ≤80 ≤80 ≤80
6 Dust Emission(mg/m3) 30 30 30 30 30 30 30
7 Total Power 3KW 5.5KW 7.5KW 11KW 22KW 37KW 45KW
8 Total Weight/Area 563KG/24.2m2 838KG/35.6m2 1.5ton(Without Fan)/36m2 2.5ton(Without Fan)//36m2 3ton(Without Fan)//44m2
9 Dimension
(L*W*H)mm)
1319*1268*3911 1864*1508*3776 —— 3450*2230*3060 3954*2526*3794 4730*2900*3760
