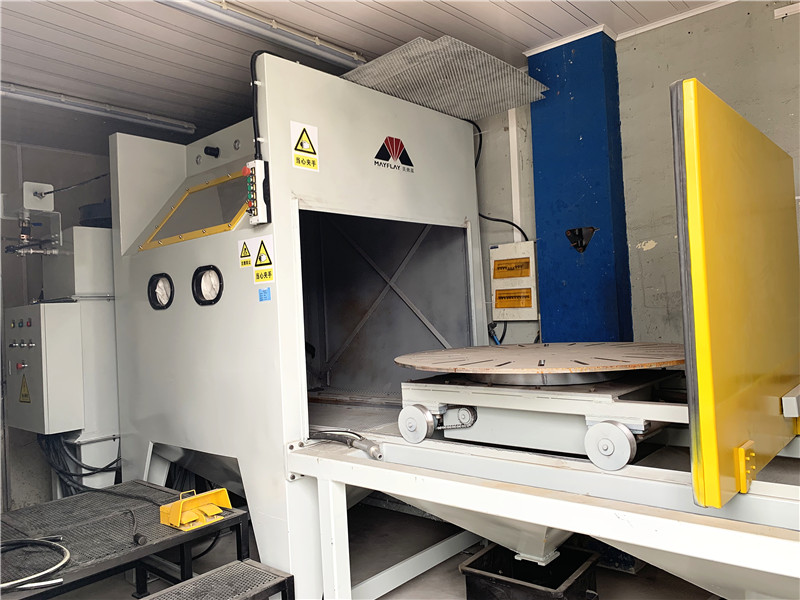

Siphon Turntable Manual Sandblasting Machine
Product Introduction

Sandblasting machine is a kind of machine that uses compressed air as power to form a high-speed jet beam which sprays the abrasives into the surface of the workpiece to be treated at high speed. Because of the impact and cutting action of abrasives on the workpiece surface, the workpiece surface is cleaned up to a certain extent and has different roughness, so the mechanical properties and fatigue resistance of the workpiece surface are improved, and the adhesion between the workpiece and the coating is increased, the durability of the coating is prolonged, and it is also conducive to the leveling and decoration of the coating.

Application

Electroplating, spraying and so on are covered with sand blasting treatment before processing; cast parts, stamping parts, welding parts, heat treatment parts and other metal workpieces to remove oxidized skin, non-metallic products surface cleaning, ceramic embryo surface black spot removal and reduction of paint pattern; old parts renovation: automobile, motorcycle, mechanical and electrical equipment and all other moving parts renovation and cleaning.

Outstanding Advantages
  • Sandblasting chamber is made of high quality carbon steel plate;
  • With a 50W-LED explosion-proof lamp;
  • With a matching electromagnetic pulse dust removal system;
  • With a 6mm tungsten carbide spray gun;
  • With a set of cyclone separation system;
  • With a foot switch and a set of filters;
  • With a set of turntable system;
Contrast Of Sandblasting Products
VS
Before sand blasting
After sand blasting
Quality Control
1Sand blasting chamber

1. Sandblasting chamber is made of steel and welded to ensure adequate strength.

2. Dust-proof and explosion-proof LED lighting is installed on the top of sandblasting chamber.

3. Equipped with foot switch and emergency stop button.

4. The pipeline is equipped with manual air switch valve, oil-water separator and pressure regulating valve.

5. The pipeline is equipped with manual air switch valve, oil-water separator and pressure regulating valve.

6. The bottom of the sandblasting chamber is equipped with a mesh partition board, and the honeycomb floor is below the partition board which serves as the access port for the storage of abrasives as sandblasting.

2Turntable system

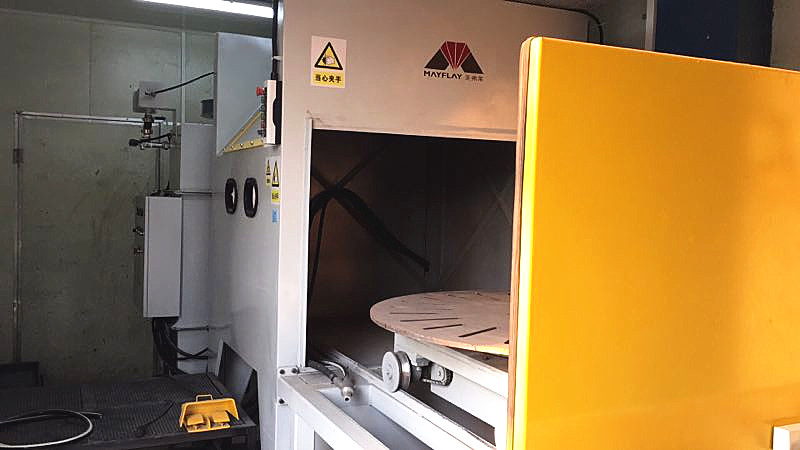

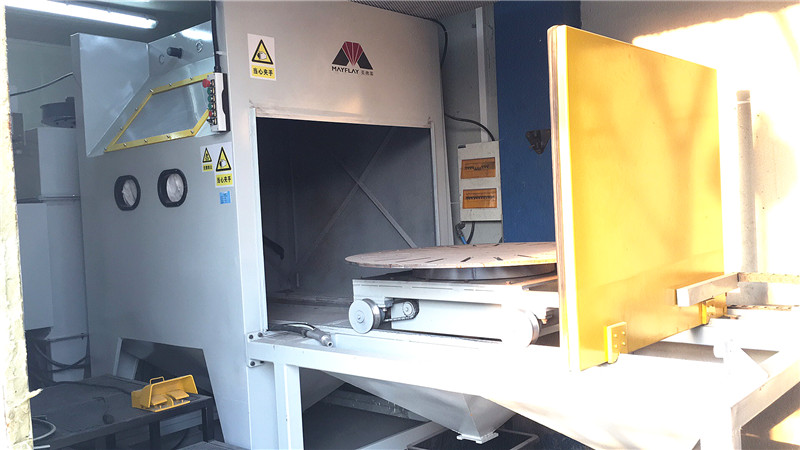

1. Turntable system and right door are integrated design. Turntable drive motor and stepping motor are installed inside the trolley, which can automatically enter and leave loading and unloading materials.

2. There is a main turntable on the top of the trolley. The main turntable is made of die steel and heat treated. Its hardness is greater than 59HRC.

3. The maximum load-bearing capacity of the trolley is 100KG and the maximum diameter of the mounting parts is 1200mm.

4. Wear-resistant rubber is attached to the outside of the trolley to prevent steel shots from hitting.

3Observation window

1.The observation window is used to observe sand blasting condition during sand blasting operation.

4Cyclone separator


1. A set of wind separator system with full curtain separation system has good separation effect.

2. The rear part of the air separator is equipped with a suction pipe for separating sand and dust, and an internal regulating valve which can effectively separate broken steel shot and dust in time.


5Dust collector system

1.With a filter cartridge.

2. It is suitable for indoor emission with dust emission of 50mg/m3.

3. With automatic backblowing cleaning device, the backblowing time interval can be set.

6Electric cabinet

1. Two-phase alternating current of main power supply: 220V + 10%, 50Hz + 2%.

2. The panel is equipped with pressure adjustment knob, working pressure gauge, status indicator lamp, power switch knob, etc.

3. Low Voltage Electrical Appliances: Schneider


Parameter Introduction

No. Name Suction Type Manual Turntable Sand Blasting Machine
1 Model MS-1305
2 Air pressure type Suction type
3 Working way Manual Siphon Continuous Sandblasting
4 Sand blasting media Glass sand, ceramic sand, brown corundum, white corundum and other abrasives
5 Application Surface rust removal, oil removal, burr removal, oxidation skin removal, surface paint removal of small workpieces such as hardware, electronics, dies and so on.
6 Work cabinet size (L*W*H)mm 1500*1500*1400
7 Workpiece size (L*W*H)mm 1200*1200*600
8 Dust collector Electromagnetic Pulse Dust Collector
9 Dust collector fan 4KW 380V/50HZ
10 Lighting Lamp 51W-LED Explosion-proof Lamp
11 Spray gun caliber 8mm
12 Cyclone separator 1pcs
13 Foot switch 1pcs
14 Solenoid Valve 1pcs
15 Pressure Regulation Valve 1pcs
16 Pulse valve 1 pcs
17 Filter +Automatic Emission 1pcs
18 Pressure 5-8KG/m3
19 Cotton Glove 1 pair
20 Low Voltage Electrical Appliances CHINT
21 Power supply AC220V
22 Total power 5.6KW
23 Total weight 1.56 tons
24 Machine size (L*W*H)mm 4608*3220*2644
