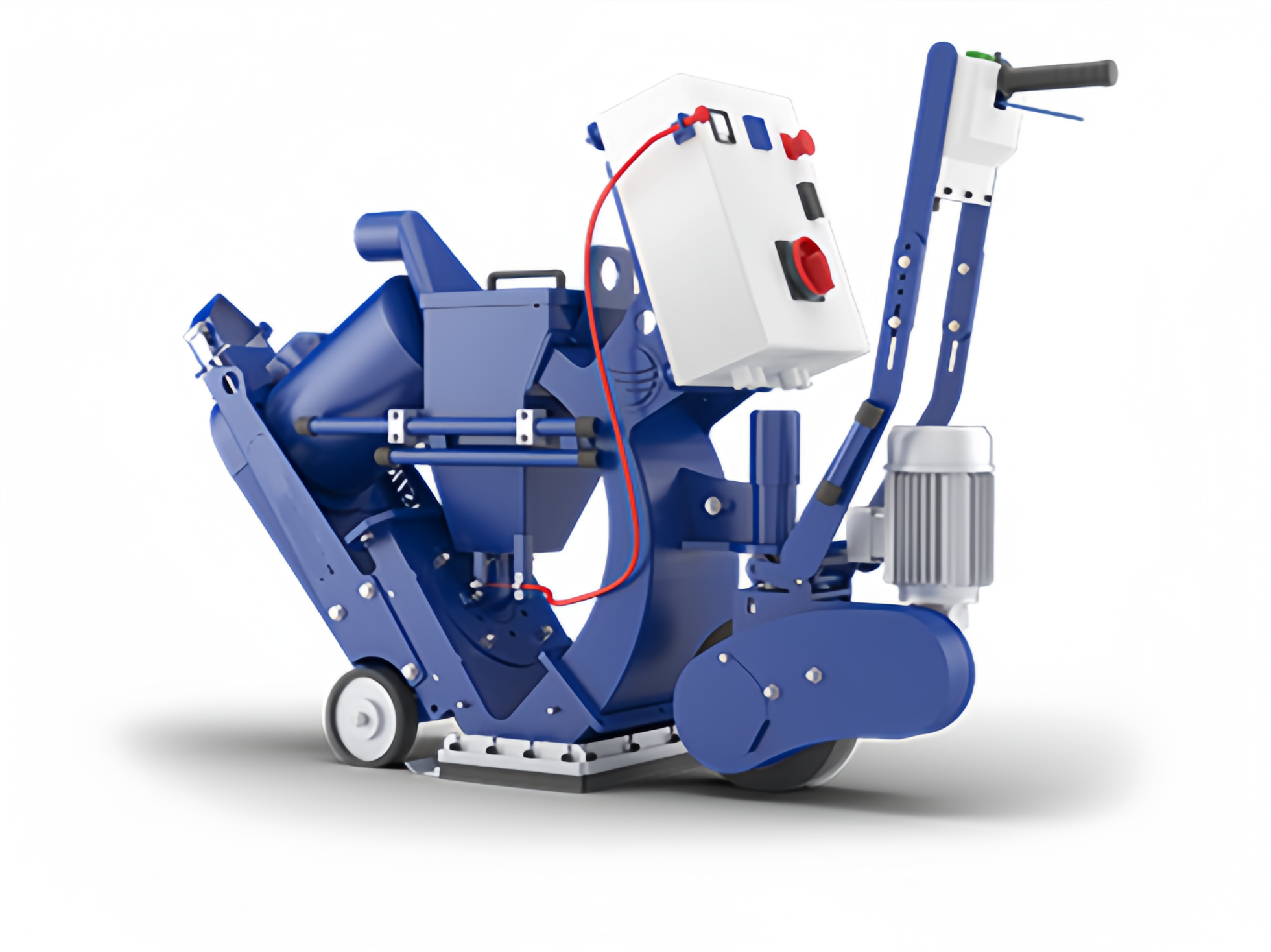

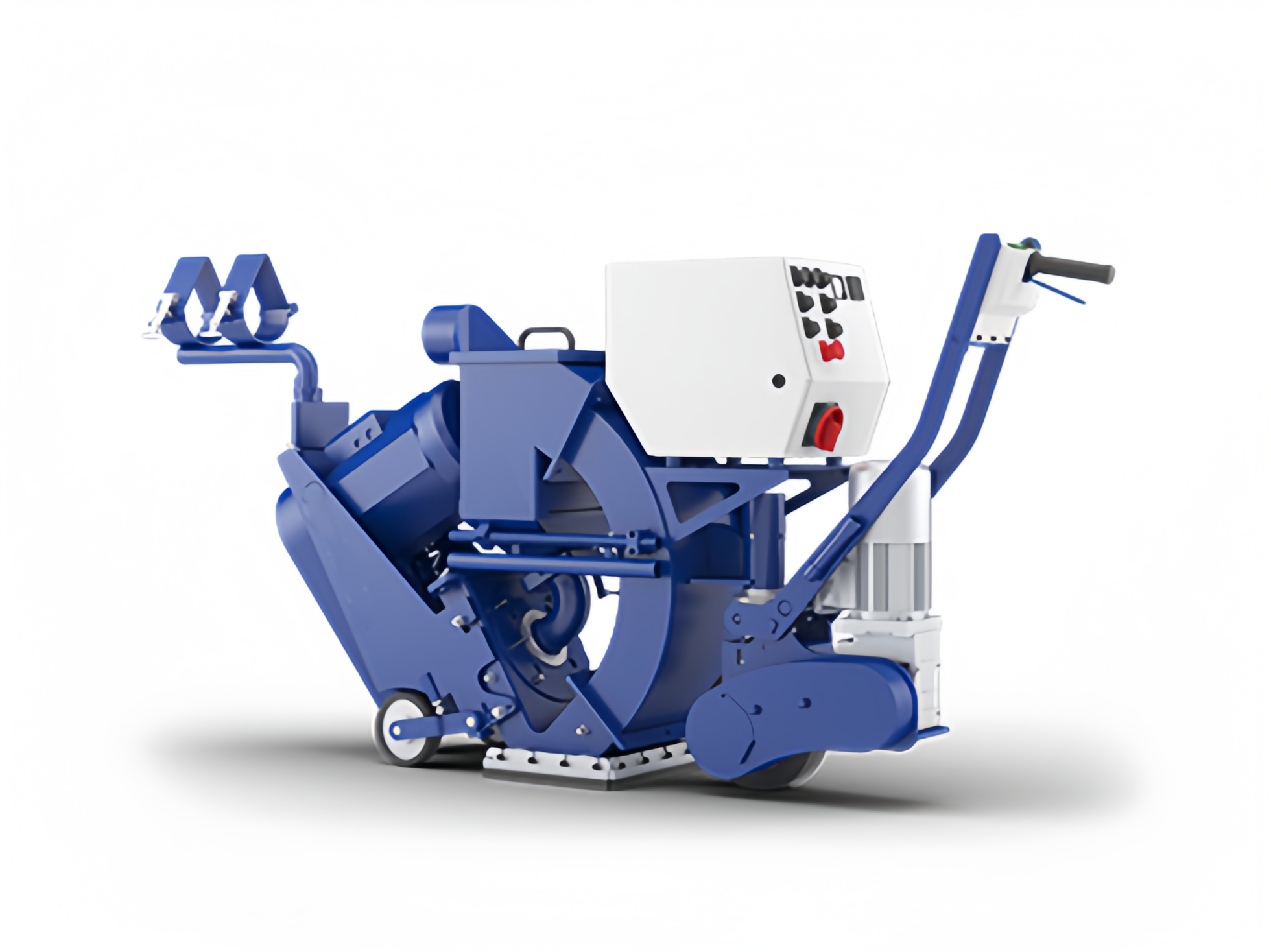

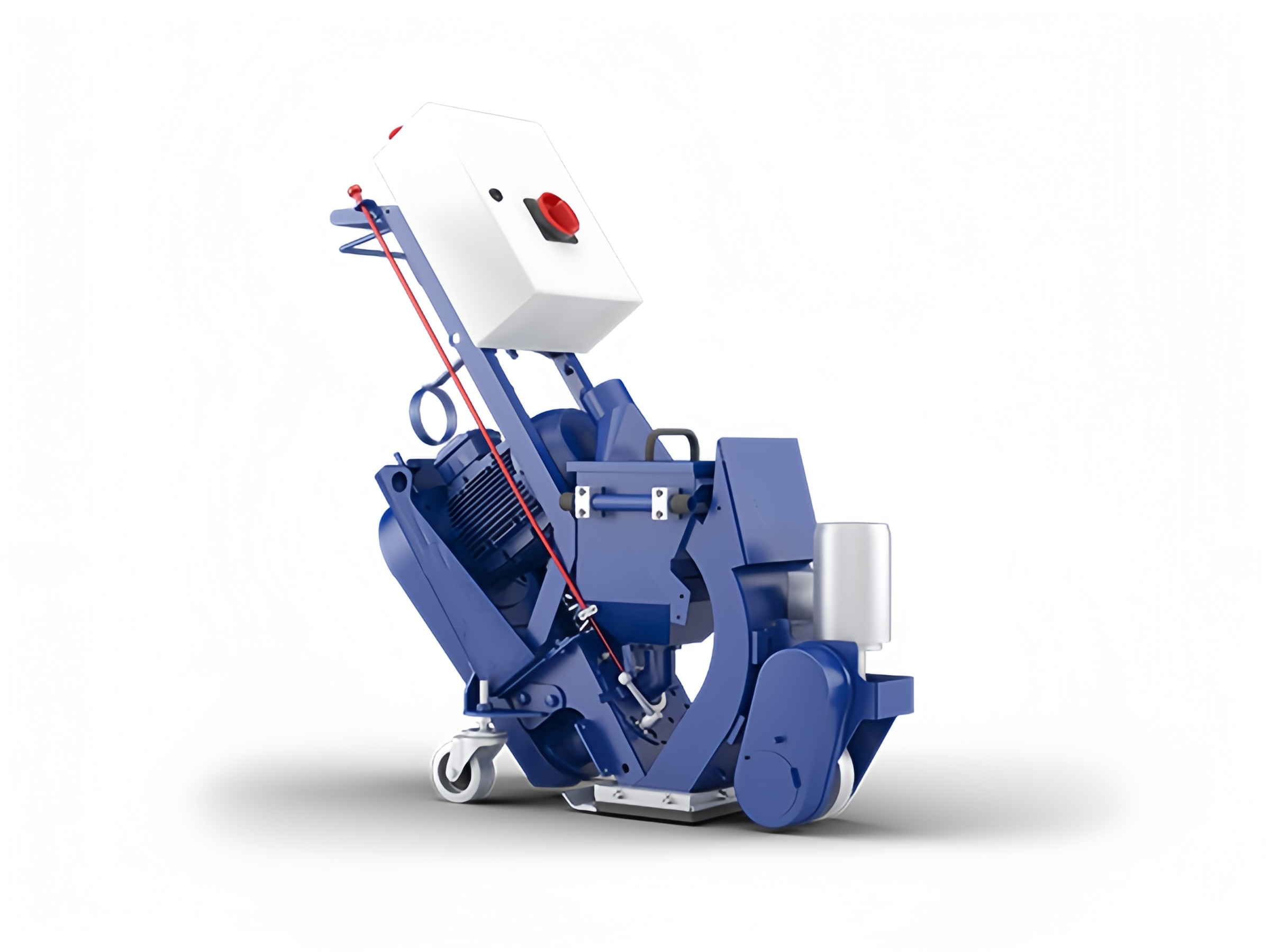

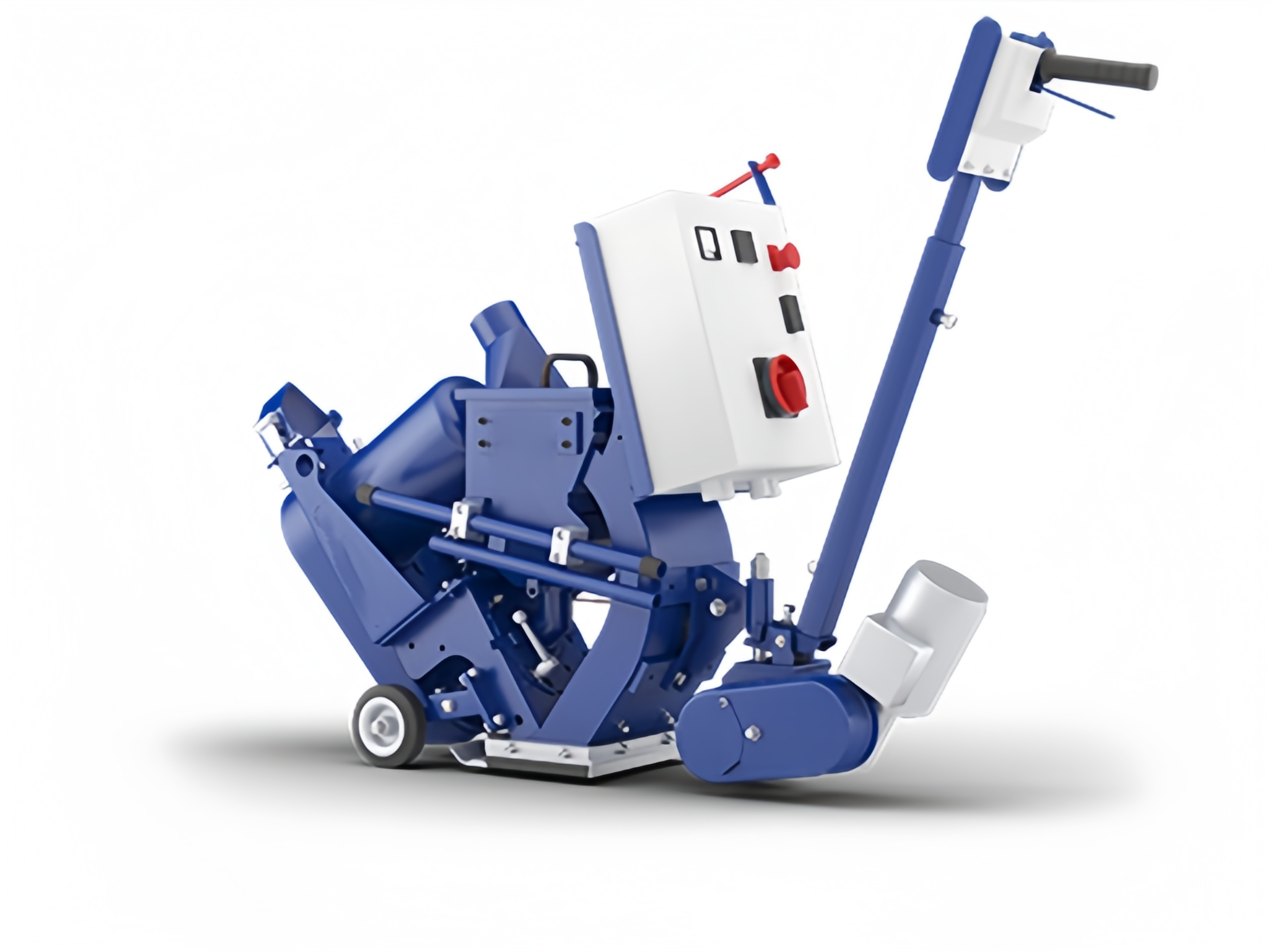

Floor Shot Blaster

Introduction

A Floor Shot Blaster is a specialized machine designed for surface preparation and cleaning of floors, particularly in industrial and commercial settings. It uses a high-speed shot blasting process to remove contaminants, old coatings, and imperfections from concrete, steel, and other hard surfaces. This machine is widely used for preparing floors for new coatings, improving traction, and enhancing overall surface quality.

Applications

Floor Shot Blasters are used in a variety of applications, including:

1.Concrete Floor Preparation: Ideal for removing old coatings, paint, and contaminants from concrete floors.

2.Surface Profiling: Creates a roughened texture to improve adhesion for new coatings, epoxy toppings, or overlays.

3.Traction Improvement: Enhances skid resistance on surfaces like garage floors and pool decks.

4.Industrial and Commercial Use: Suitable for large areas such as warehouses, parking garages, and industrial plants.



Outstanding Advantages
  • Efficiency: Rapidly prepares large floor areas with minimal downtime;
  • Uniformity: Provides a consistent surface profile across the entire floor;
  • Environmental Protection: Dust collection systems minimize airborne particles;
  • Versatility: Suitable for various surface types and conditions;
  • Cost-Effectiveness: Reduces labor and maintenance costs through efficient operation;
Contrast Of Floor Shot Blaster Products
VS
Before shot blasting
After shot blasting
Working Principle

Working Principle

The Floor Shot Blaster operates using a motor-driven shot blasting wheel that generates centrifugal force and wind force during high-speed rotation. Here’s how the process works:

1.Shot Injection: Steel shots or other abrasive media are fed into the shot inlet pipe. The flow of the shot can be adjusted to control the intensity of the blasting.

2.Acceleration and Ejection: The shot is accelerated by the high-speed rotating wheel and ejected through a directional sleeve. The centrifugal force propels the shot onto the floor surface at high velocity.

3.Surface Impact: The shot impacts the floor surface, removing contaminants, old coatings, and imperfections. The impact also creates a roughened texture that improves adhesion for new coatings.

4.Recovery and Recycling: The used shot, along with dust and debris, is collected and separated. The shot is recycled back into the system, while the dust is captured by a dust collection system.

5.Dust Control: The machine is equipped with a dust collector that captures and filters airborne particles, ensuring a clean and safe working environment.
