Machine Sandblast: An Overview
Sandblasting, also known as abrasive blasting, is a widely used industrial process that involves propelling abrasive materials at high speed onto a surface to clean, smooth, or prepare it for further treatment. This technique is highly effective for removing rust, old paint, and other contaminants, and it can also be used to create specific surface finishes。
Main Applications
1.Surface Cleaning: Removes rust, paint, and oxidation from metal, wood, and concrete surfaces。
2.Surface Preparation: Prepares surfaces for painting, coating, or welding by creating a clean and roughened surface。
3.Specialized Applications: Used for creating patterns on glass or etching designs on metal surfaces。
The working principle of sand blasting machines involves the use of compressed air or a mechanical means to propel abrasive materials onto a surface. There are two main types of sand blasting machines based on their working principle:
1.Air-Powered Sand Blasters:
These machines use compressed air to accelerate abrasive particles through a nozzle, which is directed at the surface to be treated . The force of the abrasive particles removes surface materials or contaminants.
The pressure can be adjusted depending on the material being blasted and the desired effect.
2.Mechanical Sand Blasters (Wheel Abrators):
These machines use a spinning wheel to propel abrasive materials onto the surface . The wheel's centrifugal force accelerates the abrasive particles, which are then directed at the workpiece.
This type is more suitable for heavy-duty applications and can handle larger volumes of abrasive material.

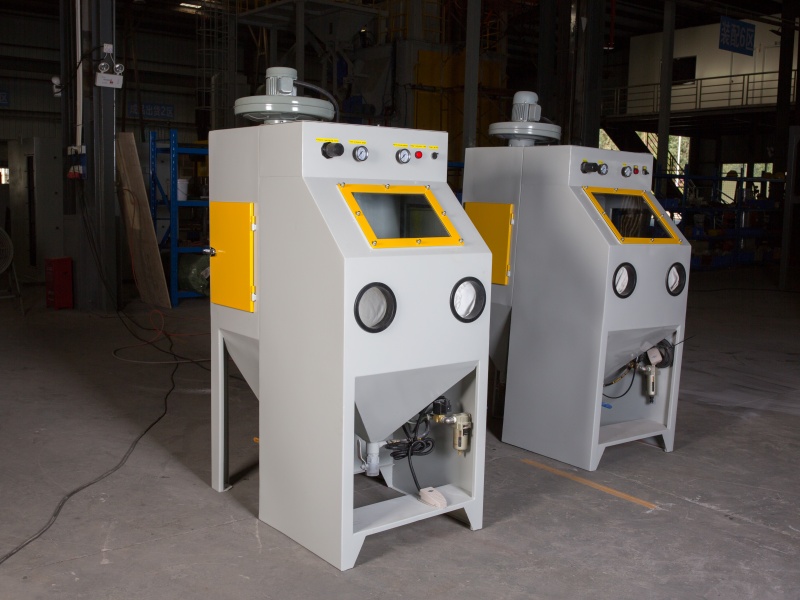

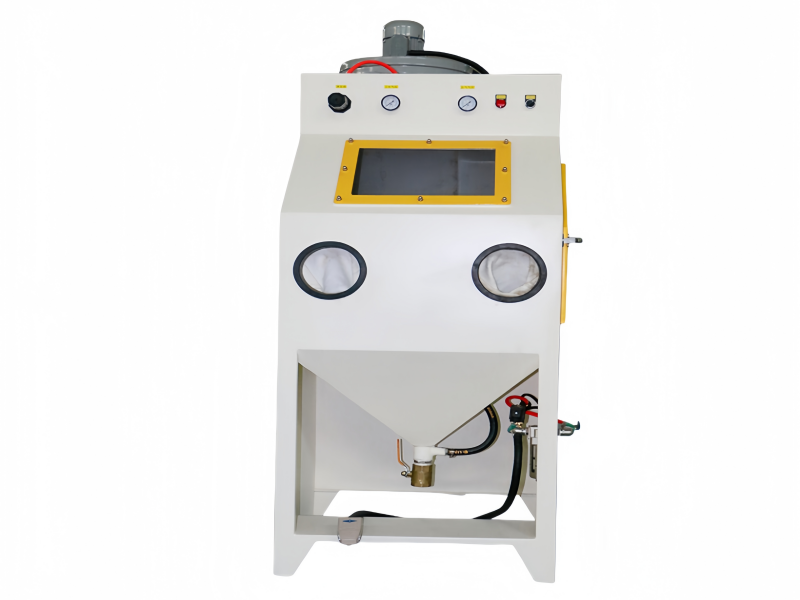

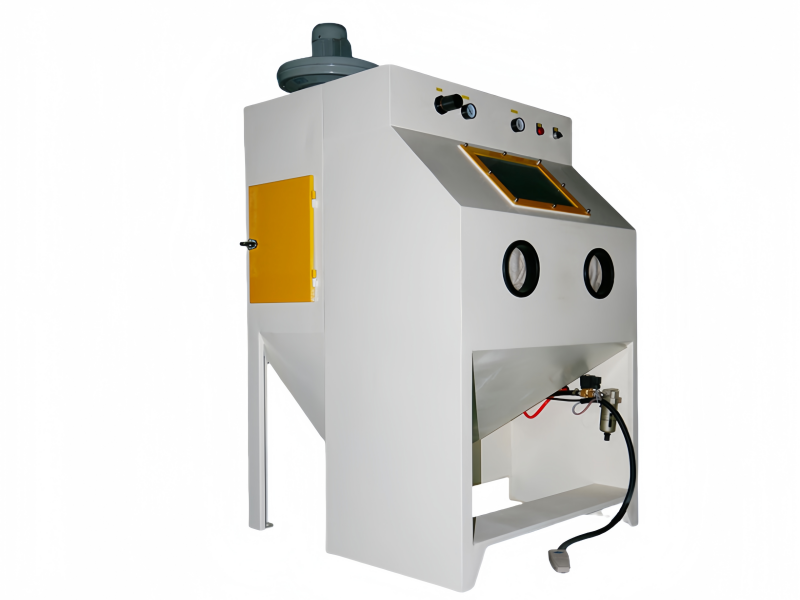

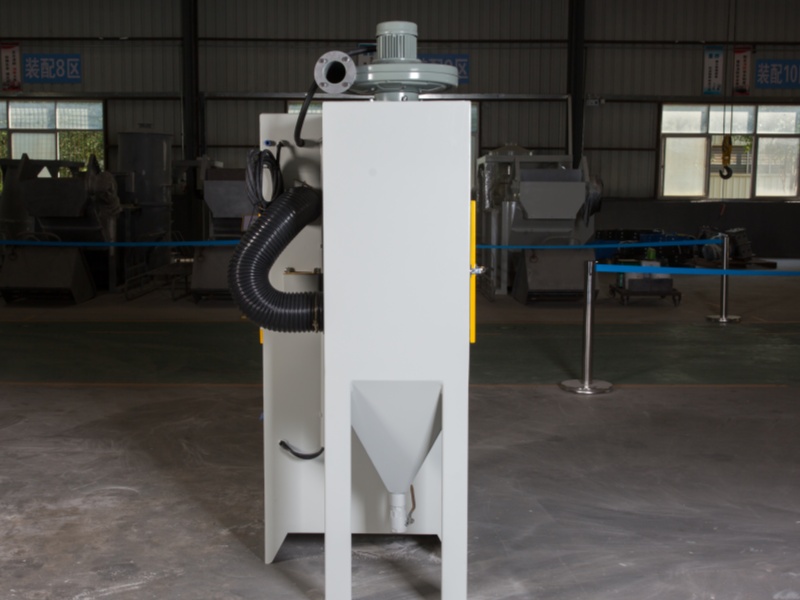

Mayflay Manual Sand Blasting Machine Parameter Sheet+Configuration Sheet |
||||||||
| No. | Name | Suction Type Manual Sand Blasting Machine | ||||||
| 1 | Model | MS-6050 | ||||||
| 2 | Air pressure type | Suction type | ||||||
| 3 | Working way | Manual Siphon Continuous Sandblasting | ||||||
| 4 | Sand blasting media | Glass sand, ceramic sand, brown corundum, white corundum and other abrasives | ||||||
| 5 | Application | Surface rust removal, oil removal, burr removal, oxidation skin removal, surface paint removal of small workpieces such as hardware, electronics, dies and so on. | ||||||
| 6 | Work cabinet size (L*W*H)mm | 600*500*500 | ||||||
| 7 | Workpiece size (L*W*H)mm | 400*400*200 | ||||||
| 8 | Dust collector | Electromagnetic Pulse Dust Collector | ||||||
| 9 | Dust collector fan | 550W 220V/50hz | ||||||
| 10 | Lighting Lamp | 50W-LED Explosion-proof Lamp | ||||||
| 11 | Spray gun caliber | 6mm | ||||||
| 12 | Cyclone separator | No | ||||||
| 13 | Foot switch | 1pcs | ||||||
| 14 | Solenoid Valve | 1pcs | ||||||
| 15 | Pressure Regulation Valve | 1pcs | ||||||
| 16 | Pulse valve | 1pcs | ||||||
| 17 | Filter +Automatic Emission | 1pcs | ||||||
| 18 | Pressure | 5-8KG/m3 | ||||||
| 19 | Cotton Glove | 1 pair | ||||||
| 20 | Low Voltage Electrical Appliances | CHINT | ||||||
| 21 | Power supply | AC220V | ||||||
| 22 | Total power | 0.6KW | ||||||
| 23 | Total weight | 0.2T | ||||||
| 24 | Machine size (L*W*H)mm | 700*1000*1600 | ||||||
