Sand Blasting Machine

Introduction

Sandblasting machines are versatile tools used for surface cleaning, stripping, and preparation across various industries.

Applications of Sandblasting Machines

1.Industrial Cleaning: Removing rust, paint, and other contaminants from metal surfaces in industries like shipbuilding, automotive, and construction.

2.Surface Preparation: Preparing surfaces for painting, bonding, or other coating activities by achieving a uniform surface texture.

3.Art and Design: Creating intricate patterns and designs on materials like wood, metal, and glass.

4.Maintenance: Cleaning smaller tools and machinery to prevent wear and tear.

5.Concrete Cleaning: Cleaning streets, pavements, and other concrete surfaces.

Free Technical Consultation

Outstanding Advantages

Sandblasting chamber is made of high quality carbon steel plate;
With a 50W-LED explosion-proof lamp;
With a matching electromagnetic pulse dust removal system;
With a 6mm tungsten carbide spray gun;
With a set of cyclone separation system;
With a foot switch and a set of filters;
With a pair of sandblasting gloves;

Contrast Of Sandblasting Products

Before sand blasting

After sand blasting

Working Principle

The working principle of sand blasting machines involves the use of compressed air or a mechanical means to propel abrasive materials onto a surface. There are two main types of sand blasting machines based on their working principle:

1.Air-Powered Sand Blasters:

These machines use compressed air to accelerate abrasive particles through a nozzle, which is directed at the surface to be treated . The force of the abrasive particles removes surface materials or contaminants.

The pressure can be adjusted depending on the material being blasted and the desired effect.

2.Mechanical Sand Blasters (Wheel Abrators):

These machines use a spinning wheel to propel abrasive materials onto the surface . The wheel's centrifugal force accelerates the abrasive particles, which are then directed at the workpiece.

This type is more suitable for heavy-duty applications and can handle larger volumes of abrasive material.

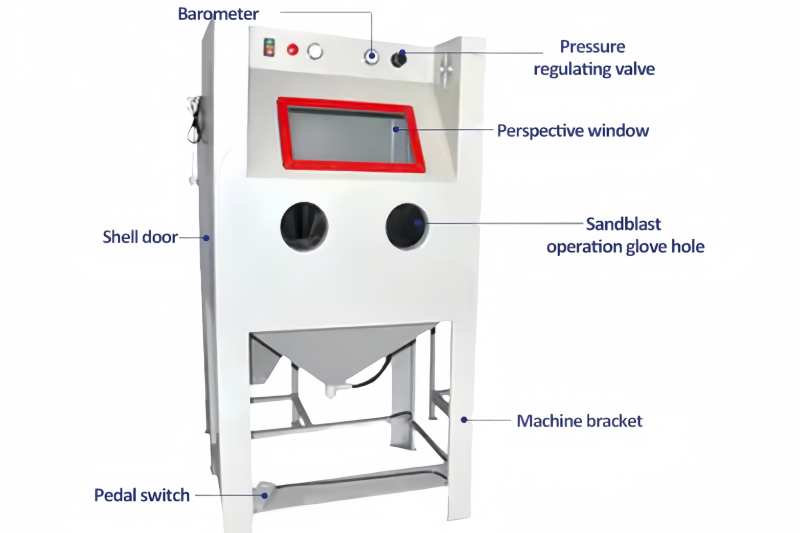

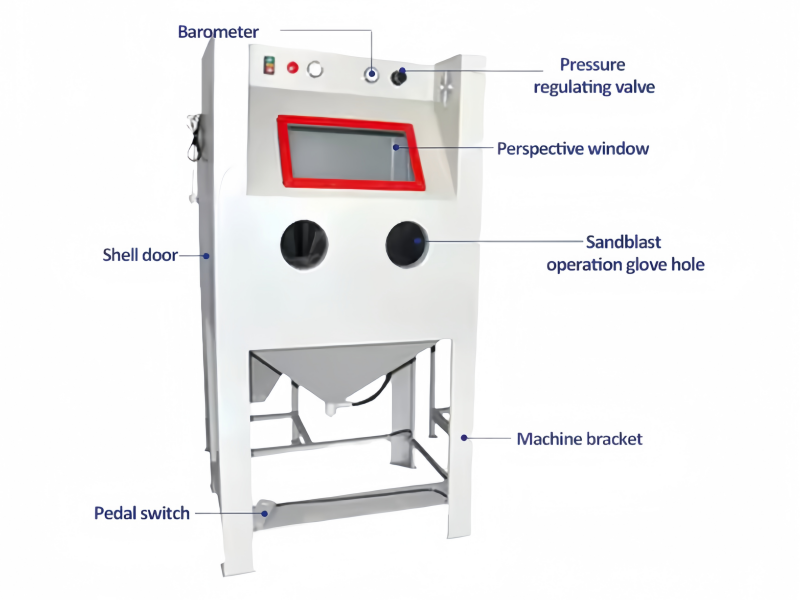

Product Description

1Sand blasting chamber

1. Sandblasting chamber is made of steel and welded to ensure adequate strength.

2. Dust-proof and explosion-proof LED lighting is installed on the top of sandblasting chamber.

3. Equipped with foot switch and emergency stop button.

4. Equipped with a tungsten carbide gun and sand blasting pipe.

5. The pipeline is equipped with manual air switch valve, oil-water separator and pressure regulating valve.

6. The bottom of the sandblasting chamber is equipped with a mesh partition board, and the honeycomb floor is below the partition board which serves as the access port for the storage of abrasives as sandblasting.

2Working station

1. Determined by worker’s height to choose whether use this.

3Observation window

1. The observation window is used to observe sand blasting condition during sand blasting operation.

4Cyclone separator

1. A set of wind separator system with full curtain separation system has good separation effect.

2. The rear part of the air separator is equipped with a suction pipe for separating sand and dust, and an internal regulating valve which can effectively separate broken steel shot and dust in time.

5Dust collector system

1. Fan power: 750w.

3. With a filter cartridge.

6Foot switch

1. Used to control the sand blasting operation.

Parameter Introduction

Mayflay Manual Sand Blasting Machine Parameter Sheet+Configuration Sheet
No.	Name	Suction Type Manual Sand Blasting Machine
1	Model	MS-6050
2	Air pressure type	Suction type
3	Working way	Manual Siphon Continuous Sandblasting
4	Sand blasting media	Glass sand, ceramic sand, brown corundum, white corundum and other abrasives
5	Application	Surface rust removal, oil removal, burr removal, oxidation skin removal, surface paint removal of small workpieces such as hardware, electronics, dies and so on.
6	Work cabinet size (LWH)mm	600500500
7	Workpiece size (LWH)mm	400400200
8	Dust collector	Electromagnetic Pulse Dust Collector
9	Dust collector fan	550W 220V/50hz
10	Lighting Lamp	50W-LED Explosion-proof Lamp
11	Spray gun caliber	6mm
12	Cyclone separator	No
13	Foot switch	1pcs
14	Solenoid Valve	1pcs
15	Pressure Regulation Valve	1pcs
16	Pulse valve	1pcs
17	Filter +Automatic Emission	1pcs
18	Pressure	5-8KG/m3
19	Cotton Glove	1 pair
20	Low Voltage Electrical Appliances	CHINT
21	Power supply	AC220V
22	Total power	0.6KW
23	Total weight	0.2T
24	Machine size (LWH)mm	70010001600

Industry Application

Shot blasting and derusting production line for Marine engineering machinery parts

Marine Transportation Industry

Shot blasting cleaning line solution for parts of bullet train brake system
