Wire Rod Coil Shot Blasting Machine

Introduction

A Wire Rod Coil Shot Blasting Machine is a specialized industrial device designed to clean, descale, and prepare the surfaces of wire rod coils through the shot blasting process. This machine is particularly effective for removing rust, oxide scale, and other contaminants from wire rod coils, ensuring they are ready for further processing such as drawing, rolling, or coating.

Applications

1.Wire Manufacturing: Preparing wire rods for further processing or coating.

2. Metal Industries: Descaling wire for improved surface quality and adherence.

3. Automotive and Construction Sectors: Ensuring clean and prepared wire for various applications.

Free Technical Consultation

Outstanding Advantages

High Efficiency: The machine can process large volumes of wire rods quickly.;
Improved Surface Quality: It ensures a smooth and even surface finish, enhancing the adhesion of coatings;
Reduced Environmental Impact: The mechanical blasting process eliminates the need for chemical cleaning, reducing environmental pollution;
Low Maintenance: Modern designs feature fewer wearing parts and easy replacement mechanisms, reducing downtime;

Contrast Of Wire Rod Shot Blasting Machine Products

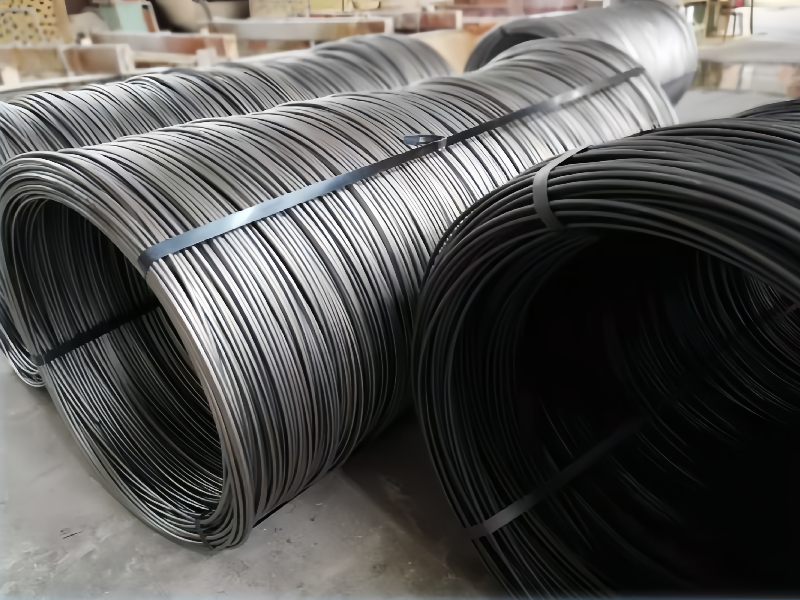

Before shot blasting

After shot blasting

Working Principle

(1) Working principle

The working principle of shot blasting According to the characteristics of disc round material, the machine is equipped with 5 high-efficiency shot blasting devices, and installed on the side of the shot blasting chamber, and the shot blasting speed of 60-90 m/s to clean the disc round material. The screw horizontal conveying system, high strength belt elevator, pellet separation system, two-stage purification and dust removal system (inertia + filter cartridge), automatic + manual man-machine interface electronic control system, so that the wire to meet the requirements of efficient shot blasting cleaning.

(2) Steel shot cycle sequence:

Pellet storage → Flow control → Shot blasting cleaning

↑ ↓

Steel shot Separator ← Bucket elevator vertical lifting ← Bottom screw conveying

(3) Dust treatment sequence:

Blast chamber/separator dust → butterfly valve air volume control → inertia settling chamber → cartridge dust collector → Discharge into the atmosphere

Industry Application

Shot blasting and derusting production line for Marine engineering machinery parts

Marine Transportation Industry

Shot blasting cleaning line solution for parts of bullet train brake system
