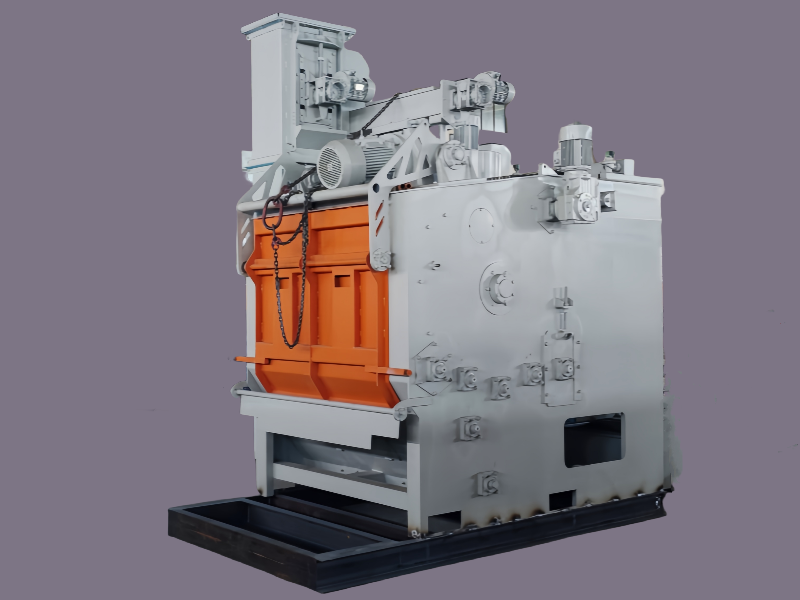

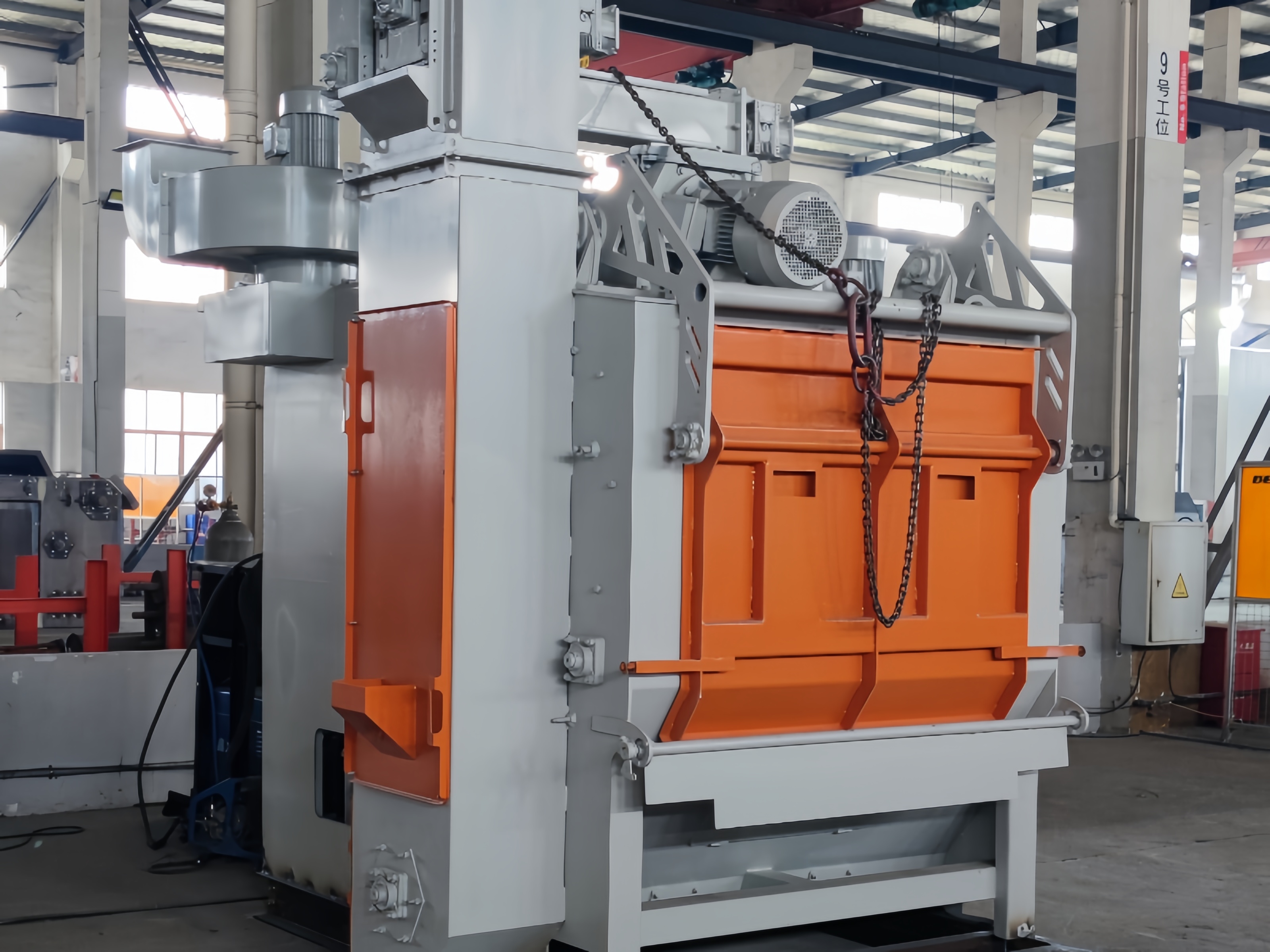

Rubber Tumblast Machine

Introduction

A Rubber Tumblast Machine is a specialized industrial device designed for surface treatment of small to medium-sized components through a tumbling and shot blasting process. This type of machine uses a rubber belt to gently tumble the workpieces, ensuring uniform exposure to the shot blasting process. It is particularly effective for cleaning, descaling, and shot peening delicate parts that require gentle handling.


Applications

1.Foundry: De-sanding and cleaning of castings.

2.Automotive: Surface treatment of small engine parts and components.

3. Aerospace: Cleaning and shot peening of small, delicate parts.

4.General Manufacturing: Deburring and surface preparation of small metal parts.


Outstanding Advantages
  • Using Wear-resistant rubber track+manganese plate;
  • Using advanced wet dust collector system;
  • Using crushed shot secondary separation system;
  • Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
  • Using steel shot flow automatic control system;
  • Optional: automatic loading and unloading system;
  • Optional: Magnetic sorting system + spiral pusher sorting + air separation sorting system;
Contrast Of Shot Blasting Products
VS
Before shot blasting
After shot blasting
Working Principle
During the shot blast process the workpieces are constantly cascading over each other resulting in effective all-around blast coverage. The continuous contact between the workpieces accelerates the deburring process and/or the loosening and discharge of sand cores from sand castings. Up to three high-performance blast wheels guarantee homogeneous blasting results in extremely blasting cycle times, the endless belt can consist of high quality perforated rubber, or respectively, a hardened steel or manganese steel slat. Workpieces specific mixing strips. Either bonded on the rubber or welded on the slats ensure an optimized cascade action in combination with a selected belt speed.
