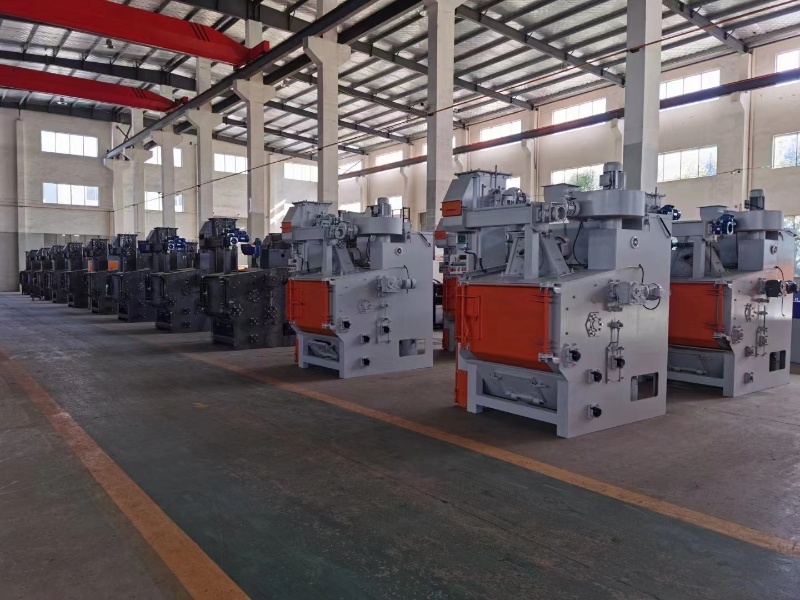

Tumble Shot Blast Machine

Introduction

A Tumble Shot Blast Machine is an industrial device designed to clean, descale, and prepare the surfaces of various components through a tumbling and shot blasting process. It is particularly effective for batch processing of small to medium-sized castings, forgings, and other parts that can be gently tumbled.


Applications

1.Surface Cleaning: Removing rust, scale, and other contaminants from castings and forgings.

2. Deburring: Removing burrs from metallic and non-metallic parts.

3.Shot Peening: Improving surface hardness and fatigue resistance.

4. Surface Preparation: Preparing surfaces for painting or coating.


Outstanding Advantages
  • Using Wear-resistant rubber track+manganese plate;
  • Using advanced wet dust collector system;
  • Using crushed shot secondary separation system;
  • Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
  • Using steel shot flow automatic control system;
  • Optional: automatic loading and unloading system;
  • Optional: Magnetic sorting system + spiral pusher sorting + air separation sorting system;
Contrast Of Shot Blasting Products
VS
Before shot blasting
After shot blasting

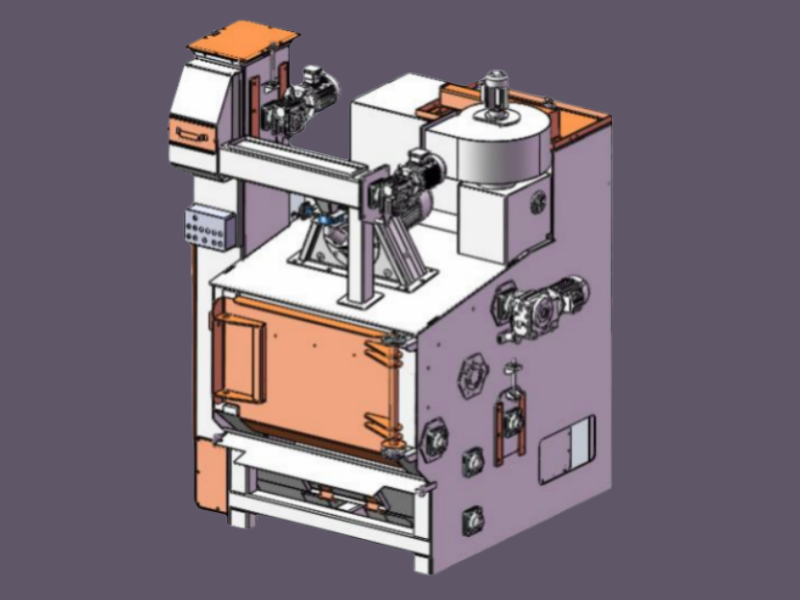

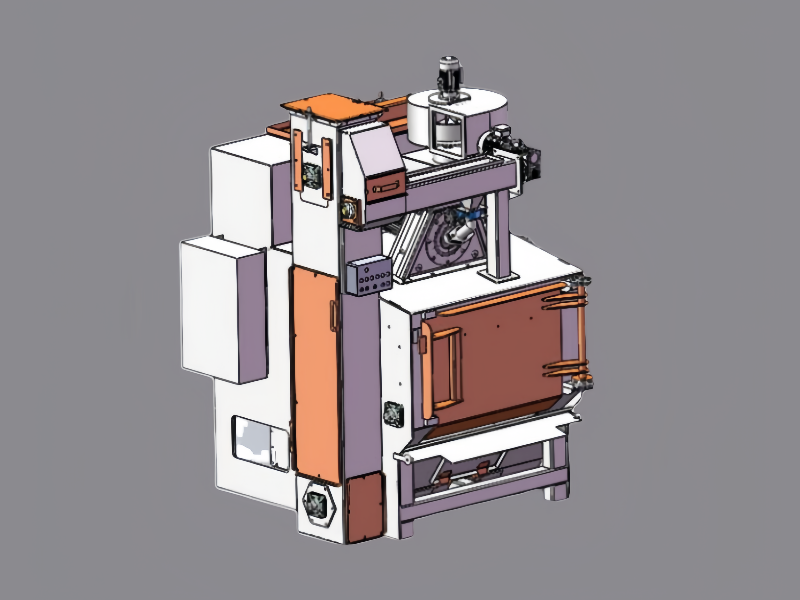

Working Principle
During the shot blast process the workpieces are constantly cascading over each other resulting in effective all-around blast coverage. The continuous contact between the workpieces accelerates the deburring process and/or the loosening and discharge of sand cores from sand castings. Up to three high-performance blast wheels guarantee homogeneous blasting results in extremely blasting cycle times, the endless belt can consist of high quality perforated rubber, or respectively, a hardened steel or manganese steel slat. Workpieces specific mixing strips. Either bonded on the rubber or welded on the slats ensure an optimized cascade action in combination with a selected belt speed.
