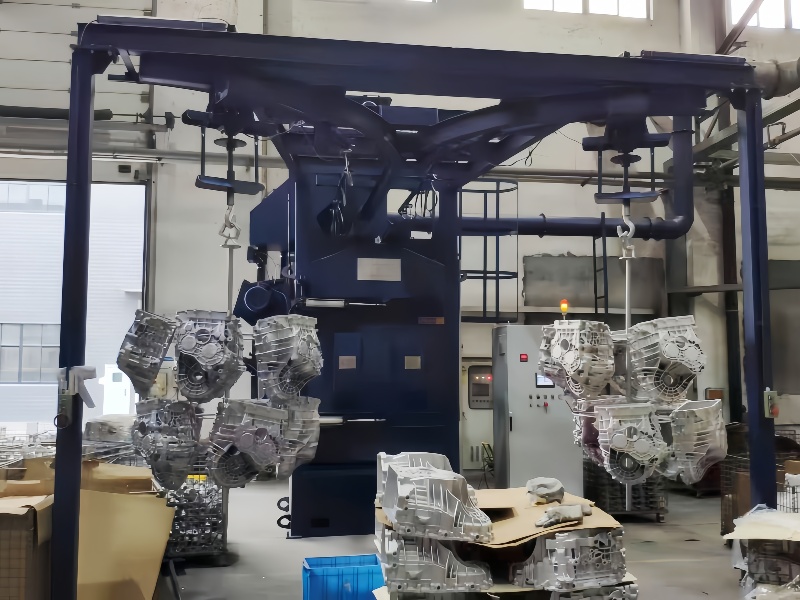

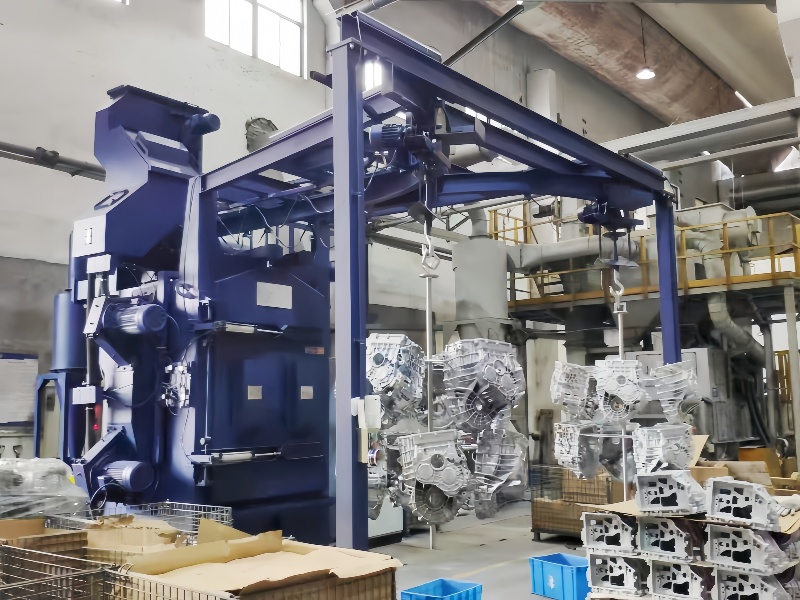

Hanger Shot Blast Machine

Introduction

A Hanger Shot Blast Machine is an industrial device designed to clean, descale, and prepare the surfaces of various workpieces by propelling abrasive media (such as steel shot or grit) at high speed. This type of machine is particularly useful for treating medium to large-sized components, especially those with irregular shapes or fragile surfaces that require careful handling. It is widely used in industries such as automotive, aerospace, construction, shipbuilding, and metalworking.

Applications

1.Automotive: Cleaning and preparing engine parts, chassis components, and other large metal parts.

2.Aerospace: Surface treatment of aircraft components to remove corrosion and prepare surfaces for coating.

3.Construction: Cleaning and preparing structural steel components for welding or painting.

4.Shipbuilding: Removing rust and scale from large steel plates and structural components.

5.Metalworking: Surface treatment of castings, forgings, and welded structures.

Free Technical Consultation

Outstanding Advantages

Using full manganese steel body, use life is 20 years;
Using advanced wet dust collector system;
Using crushed shot secondary separation system;
Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
Steel shot flow automatic control system;
Machine body using 3 layers seal structure , without any shot leaked;
Magnetic sorting system + spiral pusher sorting + air separation sorting system;

Contrast Of Shot Blasting Products

Before shot blasting

After shot blasting

Working Principle

The hook type shot blasting machine is divided into a single hook and double hooks type, and alternately loads the workpiece into the shot blasting room by two hooks. When shot blasting, steel shot from this process fall down to the bottom of the shot blasting chamber then the steel shot is transported to the bottom of the elevator by the screw conveyor, and then to the top of the sorter by the elevator belt assembly respectively. The sorter is powered by the dust collector. The purpose is to separate broken steel shot and dust from the shot blasting processing. Through the sorting device, qualified steel shot will come directly into the storage bin above the blasting machine, and ready to be used again. Shattered Steel pellets will be separated again and dropped into the waste cylinder through the sand pipe. Dust is directly sucked away by the dust collector fan and adsorbed in the filter dust collector; finally dust falls into the dust recovery box that needs to be cleaned up regularly.

Product Description

1Shot blaster

1. The blasting machine motor adopts ABB with excellent and controllable manufacturing process, good sealing, good dynamic balance and stable and reliable performance advantages.

2. The blasting machine outside shell is made of 10mm high-quality carbon steel plate by laser cutting and precision bending. The shell is welded by special fixture to ensure the parallelism of the two sides of the blasting machine shell and the concentricty of the hole.

3. The top guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.

4. End guard plate is made of high wear-resistant manganese 13 steel plate by laser cutting.

5. The side guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.

6. The Orientation sleeve is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.

7. The Pill wheel is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.

8. The blades is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.

9. The impeller is precisely machined with CNC die steel, and the machined precision is (+0.01). The surface hardness of the impeller can reach HRC58-62 by vacuum heat treatment under low pressure after machined.

10. The service life of the above vulnerable parts is more than three times as long as that of the casting products (shot material: less than S460 (1.5mm cast steel shot), hardness: HRC40-50).

2Flow valve

1. Semi-automatic flow control system, used to control the flow of shot into the shot blaster, the flow of steel shot is adjusted manually.

2. Fully sealed structure design, with lockable inspection openings and two bearing

3. The upper end of each flow valve is equipped with a manual globe valve. If the flow valve needs to be repaired, it can be closed so that close the steel shot flowing from the silo for easy maintenance.

3Shot blasting room

1. The shot blasting chamber is welded with all manganese steel.

2. Several manganese steel protective plates are installed in the hot zone of shot blasting chamber, which are located in 3/4 of the direct shooting area of the shot blaster. They are fixed by suspension, simple to install and easy to be disassembled and replaced.

3. A three-layer sealing structure is installed at the top to prevent the steel shot leaking from the top during shot blasting operation.

4Pneumatic door

1. Shot blasting chamber has compact structure and airtight design to ensure that steel shots do not splash during the shot blasting process.

2. The door is controlled by cylinder with automatic switch.

5Y-type slides and hooks

1. 1 set of Y-type guideway trolley, realizing continuous operation of two stations. The pneumatic valve of the rail changing mechanism controls the rail changing function. When one hanger is in shot blasting operation, the other is used for loading and unloading.

2. 2 sets of tooling system, made by welding wear-resistant steel rods after heat treatment (can be designed according to the actual needs of customers).

3. 2 sets of suspension system adopt 4-section skeleton telescopic structure, chain electric hoist system, good stability.
