Stabilizer hook type shot blasting machine
Product Introduction

Hanger type strengthening shot blasting machine is a kind of equipment for items surface treatment. Shot blasting strengthening is a specially designed technology to improve the fatigue strength of components subjected to alternating stress. Cyclic plastic strain layer is produced on the surface of spring by the impact of high-speed steel shot flow on the spring surface, which leads to favorable changes in the microstructures of the spring surface and the introduction of residual compressive stress field into the surface. Thus, the fatigue fracture and stress corrosion fracture resistance of the spring can be improved, and the reliability and durability of the spring can be improved.

Application

Gears, gear shafts, springs, automotive parts, etc.

Outstanding Advantages
  • Using full manganese steel body, use life is 20 years;
  • Using advanced wet dust collector system;
  • Using crushed shot secondary separation system;
  • Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
  • Steel shot flow automatic control system;
  • Machine body using 3 layers seal structure , without any shot leaked;
  • Magnetic sorting system + spiral pusher sorting + air separation sorting system;
Contrast Of Shot Blasting Products
VS
Before shot blasting
After shot blasting
Working Principle


The hook type shot blasting machine is divided into a single hook and double hooks type, and alternately loads the workpiece into the shot blasting room by two hooks. When shot blasting, steel shot from this process fall down to the bottom of the shot blasting chamber then the steel shot is transported to the bottom of the elevator by the screw conveyor, and then to the top of the sorter by the elevator belt assembly respectively. The sorter is powered by the dust collector. The purpose is to separate broken steel shot and dust from the shot blasting processing. Through the sorting device, qualified steel shot will come directly into the storage bin above the blasting machine, and ready to be used again. Shattered Steel pellets will be separated again and dropped into the waste cylinder through the sand pipe. Dust is directly sucked away by the dust collector fan and adsorbed in the filter dust collector; finally dust falls into the dust recovery box that needs to be cleaned up regularly。

Hanger strengthening shot blasting machine is a kind of equipment for spring surface treatment. Shot blasting strengthening is a specially designed technology to improve the fatigue strength of components subjected to alternating stress. Cyclic plastic strain layer is produced on the surface of spring by the impact of high-speed steel shot flow on the spring surface, which leads to favorable changes in the microstructures of the spring surface and the introduction of residual compressive stress field into the surface. Thus, the fatigue fracture and stress corrosion fracture resistance of the spring can be improved, and the reliability and durability of the spring can be improved.


Product Description
1Shot blaster

1. The blasting machine motor adopts ABB with excellent and controllable manufacturing process, good sealing, good dynamic balance and stable and reliable performance advantages.

2. The blasting machine outside shell is made of 10mm high-quality carbon steel plate by laser cutting and precision bending. The shell is welded by special fixture to ensure the parallelism of the two sides of the blasting machine shell and the concentricty of the hole.

3. The top guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.

4. End guard plate is made of high wear-resistant manganese 13 steel plate by laser cutting.

5. The side guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.

6. The Orientation sleeve is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.

7. The Pill wheel is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.。

8. The blades is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.

9. The impeller is precisely machined with CNC die steel, and the machined precision is (+0.01). The surface hardness of the impeller can reach HRC58-62 by vacuum heat treatment under low pressure after machined.

10. The service life of the above vulnerable parts is more than three times as long as that of the casting products (shot material: less than S460 (1.5mm cast steel shot), hardness: HRC40-50).

2Flow valve

1. Semi-automatic flow control system, used to control the flow of shot into the shot blaster, the flow of steel shot is adjusted manually.

2. Fully sealed structure design, with lockable inspection openings and two bearing

3. The upper end of each flow valve is equipped with a manual globe valve. If the flow valve needs to be repaired, it can be closed so that close the steel shot flowing from the silo for easy maintenance.

3Shot blasting room

1. The shot blasting chamber is welded with all manganese steel.

2. Several manganese steel protective plates are installed in the hot zone of shot blasting chamber, which are located in 3/4 of the direct shooting area of the shot blaster. They are fixed by suspension, simple to install and easy to be disassembled and replaced.

3. A three-layer sealing structure is installed at the top to prevent the steel shot leaking from the top during shot blasting operation.

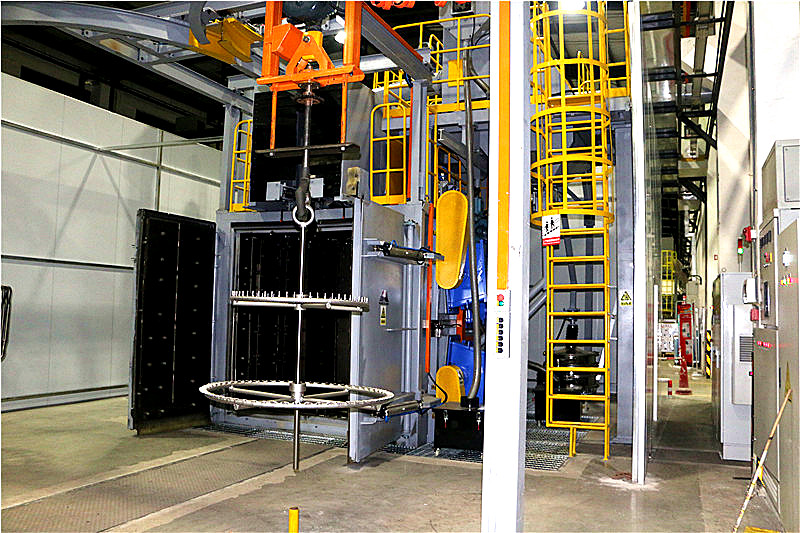

4Pneumatic door


1. Shot blasting chamber has compact structure and airtight design to ensure that steel shots do not splash during the shot blasting process.

2. The door is controlled by cylinder with automatic switch.

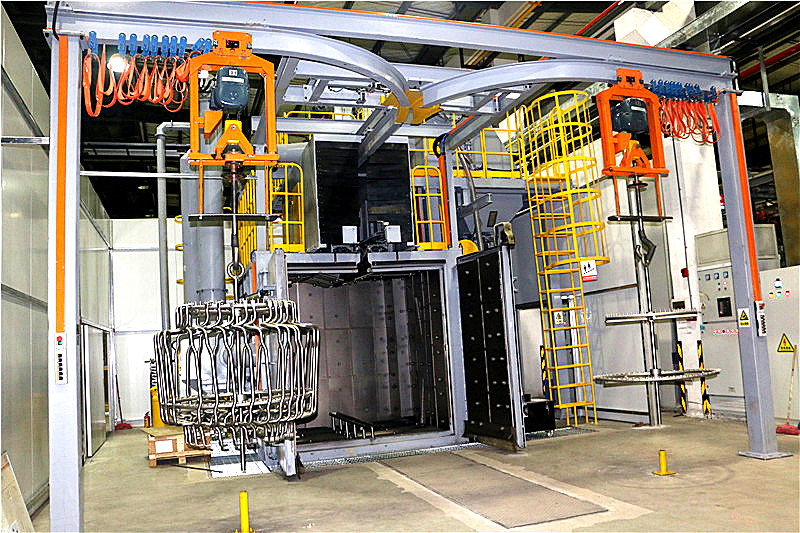

5Y-type slides and hooks

1. 1 set of Y-type guideway trolley, realizing continuous operation of two stations. The pneumatic valve of the rail changing mechanism controls the rail changing function. When one hanger is in shot blasting operation, the other is used for loading and unloading.

2. 2 sets of tooling system, made by welding wear-resistant steel rods after heat treatment (can be designed according to the actual needs of customers).

3. 2 sets of suspension system adopt 4-section skeleton telescopic structure, chain electric hoist system, good stability.

6Electrical control cabinet

1. Using Siemens PLC and touch screen

2. Using Delta or BEST converters

3. Use CHINT or Schneider brand low-voltage electrical components

4. Using shot blasting time controller

5. Using Airtic pneumatic components

6. Flow detection ammeter

7. 1 lamp

8. set of special constant temperature air conditioning (optional)

Parameter Introduction

Mayflay Stabilizer hook type shot blasting machine

NO. Name Hanger type shot blasting machine
1 Model MHB2-1616P/Q37-4
2 Sorting Configuration Air Separation
3 Application Shot blasting strengthening of various automotive parts
4 Shot Blaster Type CNC
5 Shot Blaster Qty 4 pcs
6 Shot Blaster Motor Power 37KW
7 Magnetic Separator Optional
8 Loading(without tooling) ≤2T
9 Rotation range(Da*H) φ1600*1600
10 Maximum Size Of Entrance(W*H) 2300*2300
11 Semi-Automatic Flow Valves Optional
12 Automatic Flow Valve 4 sets
13 Filter Dust Collector Optional
14 Wet Dust Collector MWDC-80
15 Outward Size Of Machine(L*W*H) 8930*7435*8170mm
16 Total Power ≤172KW
17 Total weight 32T

Standard Configuration:

1 Electrical cabinet: This machine standard is equipped with radiation fan, optional air conditioning.
2 Programmable controller plc: Siemens (according to customer requirements, other brands can be selected)
3 Touch screen: Siemens (other brands can be selected according to customer requirements)
4 Frequency converter: Best (other brands can be selected according to customer requirements)
5 Power supply voltage: Ac380v three-phase five-wire
6 Low voltage electrical appliances: Chint (other brands can be selected according to customer requirements)
7 Pneumatic components: Aritac (other brands can be selected according to customer requirements)
8 Wires and cables
9 Mayflay can also customize various non-standard shot blasting machines according to your requirements.
