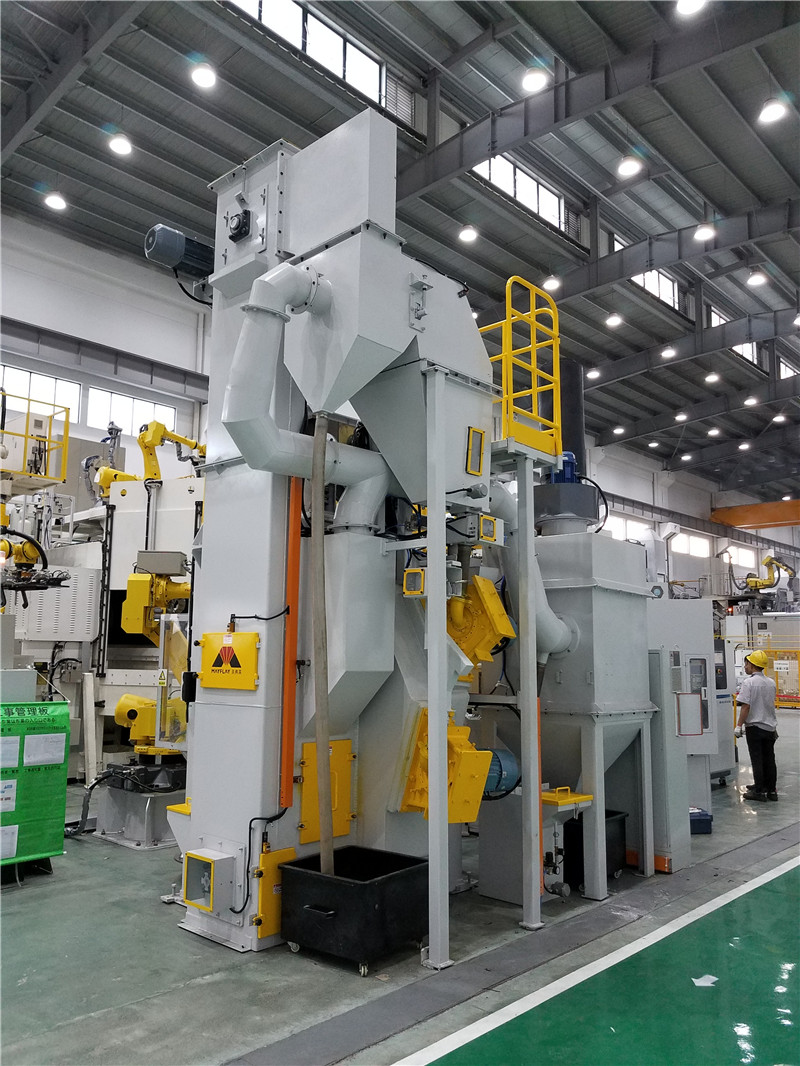

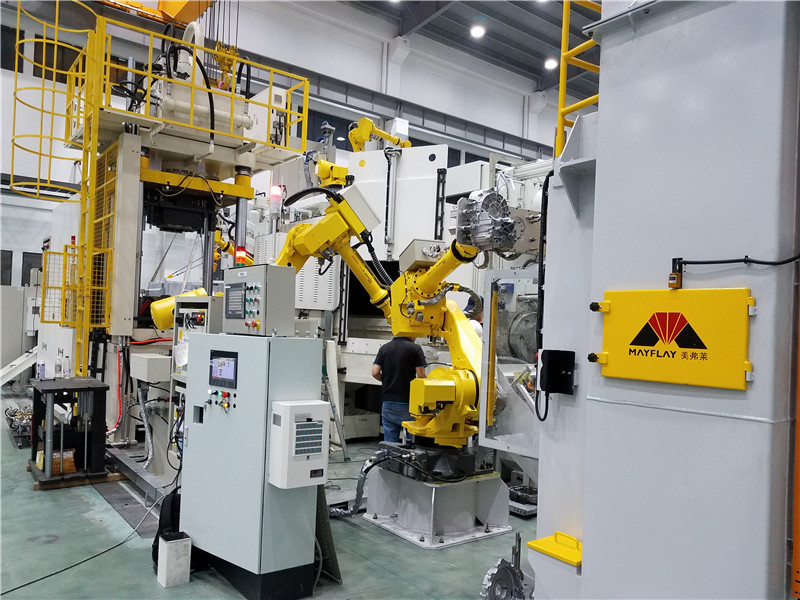

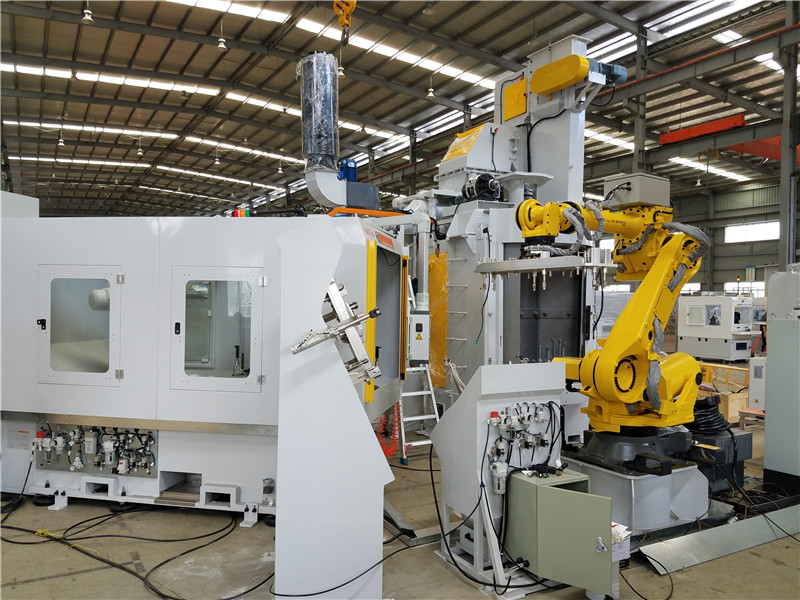

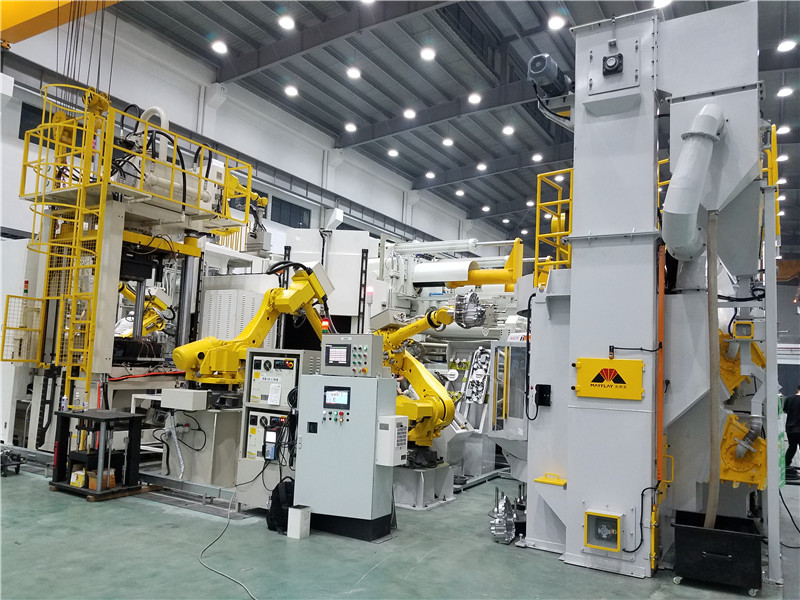

Table Shot Blast Machine + Robot Loading & Unloading

Product Introduction

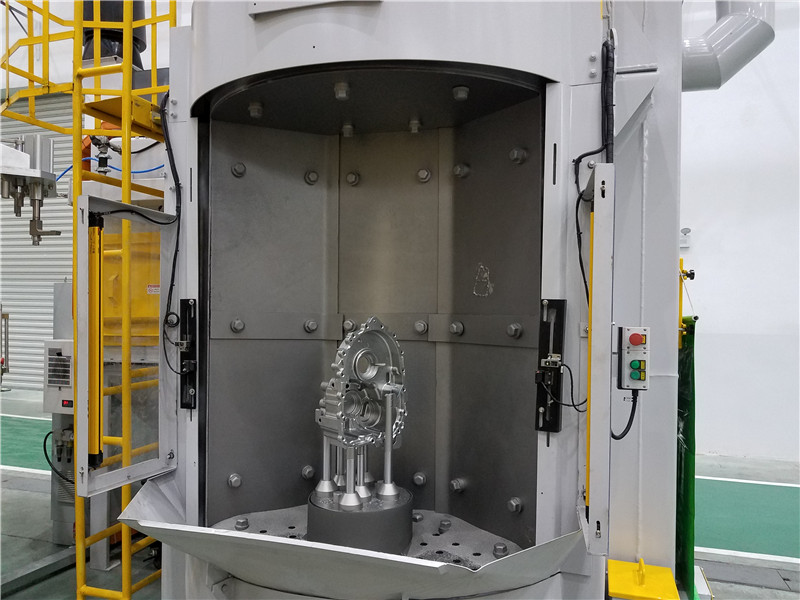

Rotary table shot blasting machine loads workpiece by turntable. According to the diameter of turntable, it can be divided into 1 200 mm, 1 600 mm, 1 800 mm, 2 2500 mm and so on. The shot blasting machine can be equipped with single or multiple shot blasters according to workpiece products, etc. Its working principle is: the workpiece is placed on the turntable (there is a distance between the workpieces, no contact, no collision), the turntable takes the workpiece into cleaning area for shot blasting cleaning, when transferred to the position of the placement, the workpiece can be removed. Therefore, this type of machine is most suitable for the workpiece one side without cleaning, otherwise the workpiece should be turned over and cleaned again.

Application

Surface cleaning or strengthening of medium and small-sized castings and forgings in the industries of gear, gear shaft, forging, casting, construction, chemical industry, motor, machine tool, etc., such as removing oxide scale, burr, sand casting, etc.

Free Technical Consultation

Outstanding Advantages

Using Wear-resistant rubber track+manganese plate;
Using advanced wet dust collector system;
Using crushed shot secondary separation system;
Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment);
Using steel shot flow semi-automatic control system;
Using automatic turntable system
Optional: Magnetic sorting system + spiral pusher sorting + air separation sorting system;

Working Principle

Rotary table shot blasting machine loads workpiece by turntable. According to the diameter of turntable, it can be divided into 1 200 mm, 1 600 mm, 1 800 mm, 2 2500 mm and so on. The shot blasting machine can be equipped with single or multiple shot blasters according to workpiece products, etc. Its working principle is: the workpiece is placed on the turntable (there is a distance between the workpieces, no contact, no collision), the turntable takes the workpiece into cleaning area for shot blasting cleaning, when transferred to the position of the placement, the workpiece can be removed. Therefore, this type of machine is most suitable for the workpiece one side without cleaning, otherwise the workpiece should be turned over and cleaned again.When shot blasting, steel shot from this process fall down to the bottom of the shot blasting chamber then the steel shot is transported to the bottom of the elevator by the screw conveyor, and then to the top of the sorter by the elevator belt assembly respectively. The sorter is powered by the dust collector. The purpose is to separate broken steel shot and dust from the shot blasting processing. Through the sorting device, qualified steel shot will come directly into the storage bin above the blasting machine, and ready to be used again. Shattered Steel pellets will be separated again and dropped into the waste cylinder through the sand pipe. Dust is directly sucked away by the dust collector fan and adsorbed in the filter dust collector; finally dust falls into the dust recovery box that needs to be cleaned up regularly.
