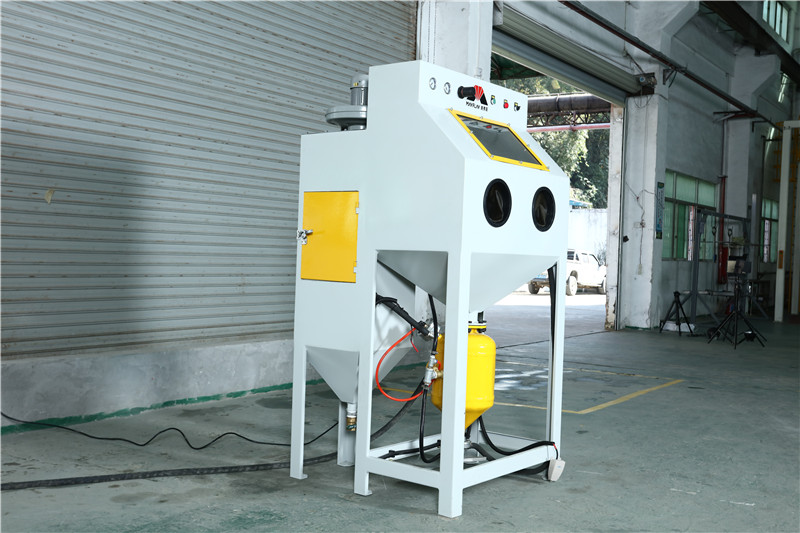

High Pressure Manual Sandblasting Machine

Product Introduction

Sandblasting machine is a kind of machine that uses compressed air as power to form a high-speed jet beam which sprays the abrasives into the surface of the workpiece to be treated at high speed. Because of the impact and cutting action of abrasives on the workpiece surface, the workpiece surface is cleaned up to a certain extent and has different roughness, so the mechanical properties and fatigue resistance of the workpiece surface are improved, and the adhesion between the workpiece and the coating is increased, the durability of the coating is prolonged, and it is also conducive to the leveling and decoration of the coating.

Application

Electroplating, spraying and so on are covered with sand blasting treatment before processing; cast parts, stamping parts, welding parts, heat treatment parts and other metal workpieces to remove oxidized skin, non-metallic products surface cleaning, ceramic embryo surface black spot removal and reduction of paint pattern; old parts renovation: automobile, motorcycle, mechanical and electrical equipment and all other moving parts renovation and cleaning.

Free Technical Consultation

Outstanding Advantages

Sandblasting chamber is made of high quality carbon steel plate;
Thomson Flow Valve Matched with Sandblasting Pressure System;
With a matching electromagnetic pulse dust removal system;

Contrast Of Sandblasting Products

Before sand blasting

After sand blasting

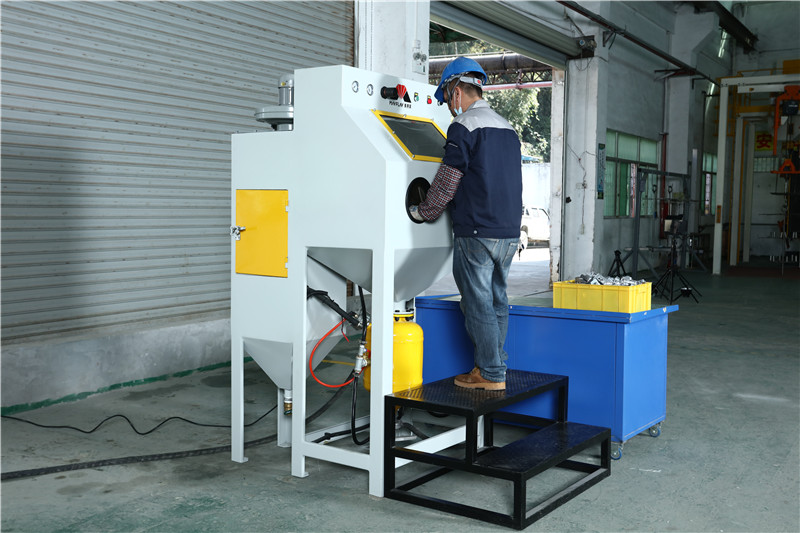

Product Description

1Sand blasting chamber

1. Sandblasting chamber is made of steel and welded to ensure adequate strength.

2. Dust-proof and explosion-proof LED lighting is installed on the top of sandblasting chamber.

3. Equipped with foot switch and emergency stop button.

4. Equipped with a tungsten carbide gun and sand blasting pipe.

5. The pipeline is equipped with manual air switch valve, oil-water separator and pressure regulating valve.

6. The bottom of the sandblasting chamber is equipped with a mesh partition board, and the honeycomb floor is below the partition board which serves as the access port for the storage of abrasives as sandblasting.

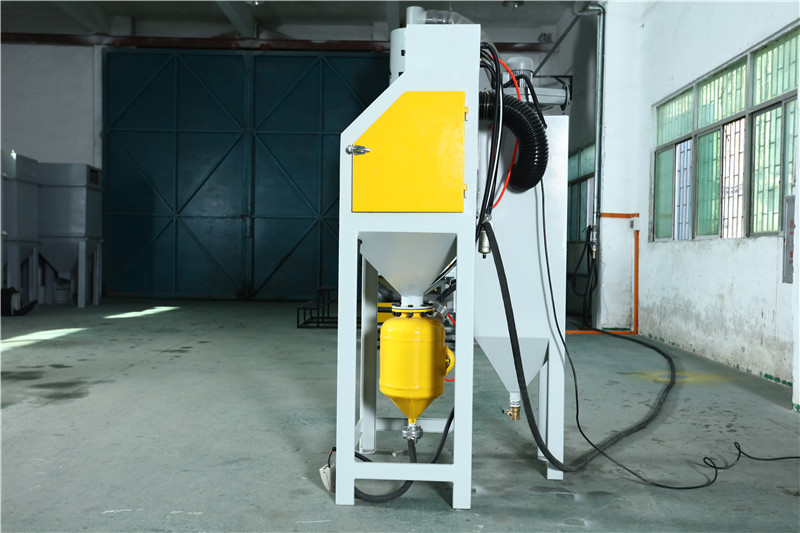

2Pressure Tank System

1. It is composed of a pressure tank and adopts peach-shaped design to increase the fluidity of steel shots.

2. The upper part is connected with pneumatic butterfly valve and storage bin. The pneumatic valve is closed during sandblasting operation. At the end of sandblasting, the pneumatic valve opens and begins to sand the pressure tank.

3Observation window

1. The observation window is used to observe sand blasting condition during sand blasting operation.

4Cyclone separator

1. A set of wind separator system with full curtain separation system has good separation effect.

2. The rear part of the air separator is equipped with a suction pipe for separating sand and dust, and an internal regulating valve which can effectively separate broken steel shot and dust in time.

5Dust collector system

1. Fan power: 750w.

3. With a filter cartridge.

6Foot switch

1. Used to control the sand blasting operation.

Parameter Introduction

Mayflay Manual Sand Blasting Machine Parameter Sheet+Configuration Sheet
No.	Name	High Pressure Type Manual Sand Blasting Machine
1	Model	MS-9060F
2	Air pressure type	High pressure type
3	Working way	Manual High Pressure Continuous Sandblasting
4	Sand blasting media	Glass sand, ceramic sand, brown corundum, white corundum and other abrasives
5	Application	Surface rust removal, oil removal, burr removal, oxidation skin removal, surface paint removal of small workpieces such as hardware, electronics, dies and so on.
6	Work cabinet size (LWH)mm	900600600mm
7	Workpiece size (LWH)mm	550450230mm
8	Dust collector	Electromagnetic Pulse Dust Collector
9	Dust collector fan	750W 220V/50hz
10	Lighting Lamp	50W-LED Explosion-proof Lamp
11	Spray gun caliber	8mm
12	Cyclone separator	1pcs
13	Foot switch	1pcs
14	Solenoid Valve	1pcs
15	Pressure Regulation Valve	1pcs
16	Pulse valve	1pcs
17	Filter +Automatic Emission	1 set
18	Pressure	5-8KG/m3
19	Sandblasting gloves with granules	1 Pair
20	Low Voltage Electrical Appliances	CHINT
21	Power supply	AC220V
22	Total power	0.8Kw
23	Total weight	0.42T
24	Machine size (LWH)mm	100010002100mm
