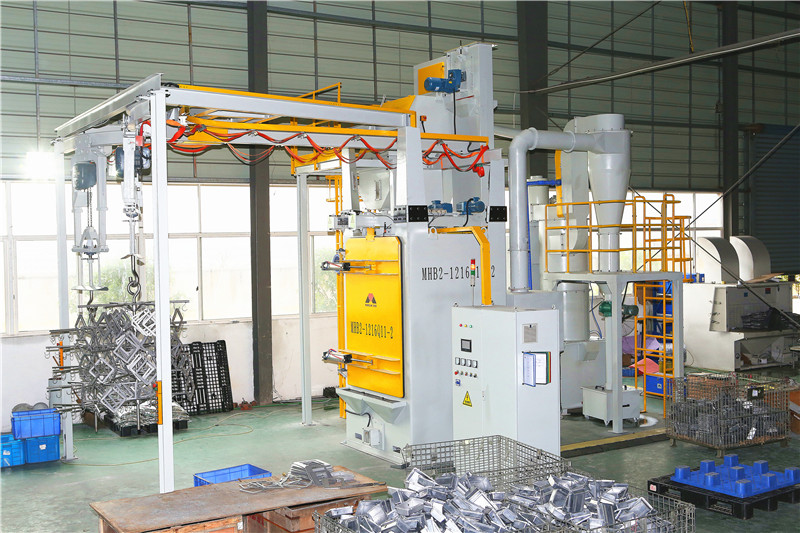

Spinner hanger shot blasting machine is typically designed to handle mixed loads of medium and large components, which often include fragile and sensitive parts that cannot be tumbled in bulk loads. Mayflay Spinner hanger shot blasting machines are ideal for heavy and complex shaped workpieces. Parts can weight from 1 kg to 3,000 kg or more, manufactured in smaller and medium series.
Surface cleaning or strengthening treatment of medium and small castings and forgings in gears, gear shafts, forging, casting, construction, chemical, motor, machine tools, etc., such as descaling, burrs, sand casting and sand removal.
1. The blasting machine motor adopts ABB with excellent and controllable manufacturing process, good sealing, good dynamic balance and stable and reliable performance advantages.
2. The blasting machine outside shell is made of 10mm high-quality carbon steel plate by laser cutting and precision bending. The shell is welded by special fixture to ensure the parallelism of the two sides of the blasting machine shell and the concentricty of the hole.
3. The top guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.
4. End guard plate is made of high wear-resistant manganese 13 steel plate by laser cutting.
5. The side guard plate is precision machined by die steel CNC, and the machining precision is ±0.01. After machining, low pressure vacuum heat treatment is adopted.
6. The Orientation sleeve is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.
7. The Pill wheel is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.
8. The blades is precision machined by die steel CNC, and the machining precision is ±0.01, with uniform wear and good balance. After machining, low pressure vacuum heat treatment is adopted.
9. The impeller is precisely machined with CNC die steel, and the machined precision is (+0.01). The surface hardness of the impeller can reach HRC58-62 by vacuum heat treatment under low pressure after machined.
10. The service life of the above vulnerable parts is more than three times as long as that of the casting products (shot material: less than S460 (1.5mm cast steel shot), hardness: HRC40-50).
1. Semi-automatic flow control system, used to control the flow of shot into the shot blaster, the flow of steel shot is adjusted manually.
2. Fully sealed structure design, with lockable inspection openings and two bearing
3. The upper end of each flow valve is equipped with a manual globe valve. If the flow valve needs to be repaired, it can be closed so that close the steel shot flowing from the silo for easy maintenance.
1. The shot blasting chamber is welded with all manganese steel.
2. Several manganese steel protective plates are installed in the hot zone of shot blasting chamber, which are located in 3/4 of the direct shooting area of the shot blaster. They are fixed by suspension, simple to install and easy to be disassembled and replaced.
3. A three-layer sealing structure is installed at the top to prevent the steel shot leaking from the top during shot blasting operation.
1. Shot blasting chamber has compact structure and airtight design to ensure that steel shots do not splash during the shot blasting process.
2. The door is controlled by cylinder with automatic switch.

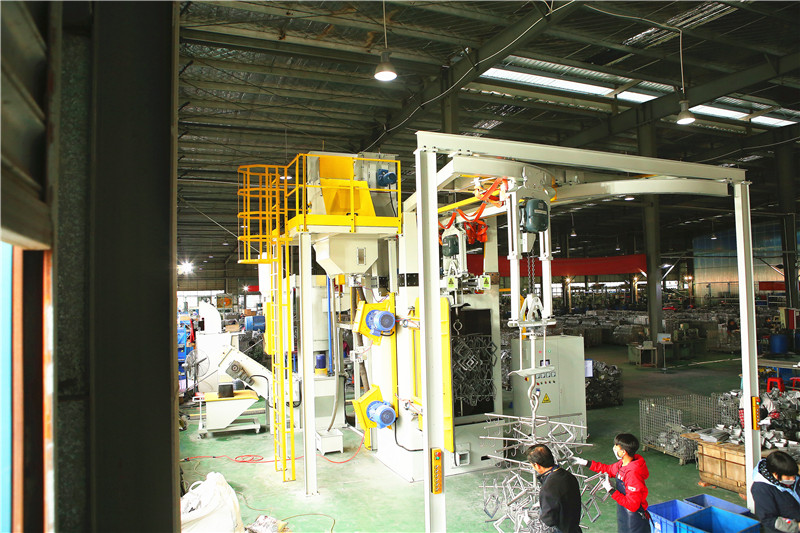

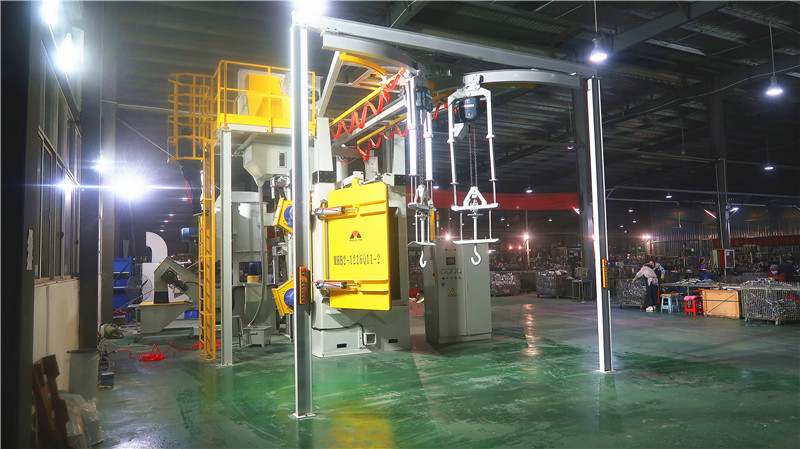

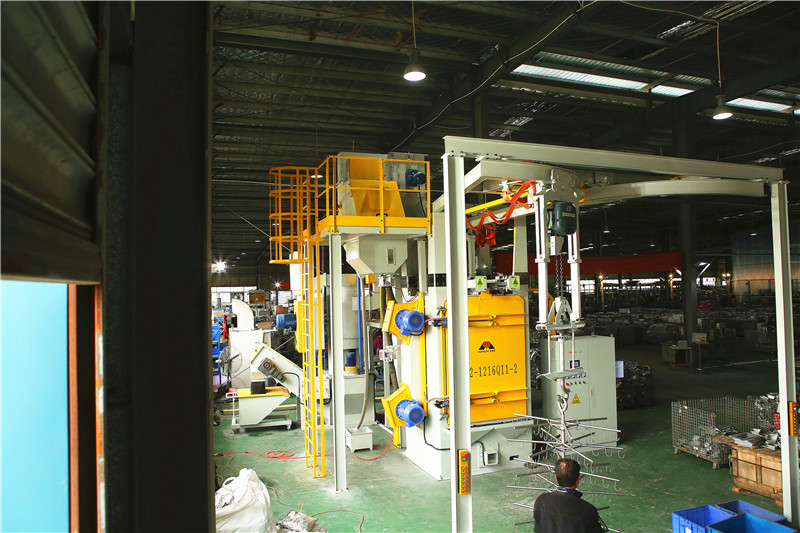

1. 1 set of Y-type guideway trolley, realizing continuous operation of two stations. The pneumatic valve of the rail changing mechanism controls the rail changing function. When one hanger is in shot blasting operation, the other is used for loading and unloading.
2. 2 sets of tooling system, made by welding wear-resistant steel rods after heat treatment (can be designed according to the actual needs of customers).
3. 2 sets of suspension system adopt 4-section skeleton telescopic structure, chain electric hoist system, good stability.
1. Using Siemens PLC and touch screen
2. Using Delta or BEST converters
3. Use Chint or Schneider brand low-voltage electrical components
4. Using shot blasting time controller
5. Using ADE aerodynamic components
6. Flow detection ammeter
7. 1 lamp
8. 1 set of special constant temperature air conditioning (optional)
Mayflay Hook Shot Blasting Machine Parameter Sheet+ Configuration Sheet
|No.||Name||Single Hook Shot Blasting Machine|
|2||Sorting Configuration||Magnetic Separation + Air Separation + Transverse Separation|
|3||Application||Intermittent Multi-Variety And Small Batch Workpiece Cleaning|
|4||Shot Blaster Type||CNC/Casting|
|5||Shot Blaster Qty||3 PCS|
|6||Shot Blaster Motor Power||11KW|
|8||Maximum Bearing Capacity (Excluding Tooling||Less Than 1Tons|
Optimal Use Of Rotation Range
|10||Maximum Size Of Entrance(W*H)||1452*1829mm|
|11||Semi-Automatic Flow Valves||3 Sets|
|12||Automatic Flow Valve||Optional|
|13||Filter Dust Collectors||Optional|
|14||Wet Dust Collector||DC80|
Outward Size Of Machine
Machine Size With Dust Collector
|17||Total Power + Dust Collector||43.45KW+11.62KW|
|18||Total Weight Bare Machine + Dust Collector||10.66Tons + 2.7Tons/span>|
|19||Chimneys (Weight + Area)||Optional|
|1||Electrical cabinet: This machine standard is equipped with radiation fan, optional air conditioning.|
|2||Programmable controller plc: Siemens (according to customer requirements, other brands can be selected)|
|3||Touch screen: Siemens (other brands can be selected according to customer requirements)|
|4||Frequency converter: Best (other brands can be selected according to customer requirements)|
|5||Power supply voltage: Ac380v three-phase five-wire|
|6||Low voltage electrical appliances: Chint (other brands can be selected according to customer requirements)|
|7||Pneumatic components: Aritac (other brands can be selected according to customer requirements)|
|8||Wires and cables|
|9||Mayflay can also customize various non-standard shot blasting machines according to your requirements.|
